Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 3018651 Trim-basket Appelez-nous -
10 01121808 Ice Tray, Plastic Appelez-nous -
11 08000908 Shelf-freezer (2) Appelez-nous -
24 5303272461 Frame-refr Shelf, Cantilever, (3) Appelez-nous -
25 5303200662 Cover-crisper Pan, Upper Appelez-nous -
26 3200690 Pan-storage Upper Appelez-nous -
27 5303201640 Support-crisper Cvr, Rh Appelez-nous -
29 5303273129 Trim-refr Shelf, (3) Appelez-nous -
33 5303205880 Gasket-crisper Cover Appelez-nous -
34 5303212895 Container, Ice Appelez-nous -
35 3200544 Trim-storage Pan, (3) Appelez-nous -
39 5303273189 Trim-frzr Shelf, (4) Appelez-nous -
40 5303272463 Shelf-glass, Refr Shelf, (3) Appelez-nous -
41 5303209981 Trim-refr Shelf, Snap-on, Rear, (3) Appelez-nous -
49 5308017594 Basket-sliding Appelez-nous -
51 5303001098 Hanger, Basket, Rh Appelez-nous -
52 5303001099 Hanger, Basket, Lh Appelez-nous -
57 5303271652 Ferrule-outer Appelez-nous -
57 5303271653 Ferrule-inner Special Order $ 20.27

59 5308012258 Screw Special Order $ 2.25

11A 08000907 Shelf-freezer (2) Appelez-nous -
11B 5308001016 Shelf-freezer Plastic Appelez-nous -
25A 3200663 Cover-crisper Pan, Lower Appelez-nous -
25A 5303200580 Control - Humidity (non-illustrated) Appelez-nous -
25B 5303200632 Cover-crisper Pan, Middle Appelez-nous -
25B 3204600 Trim-crisper Cover, Upper (non-illustrated) Appelez-nous -
25C 5303200689 Shelf-glass, Crisper Cover (non-illustrated) Appelez-nous -
26A 3200688 Pan-storage Lower Appelez-nous -
26B 3200687 Pan-storage-middle Appelez-nous -
27A 5303201639 Support-crisper Cvr, Lh (non-illustrated) Special Order $ 69.09

29A 5303209742 Retainer-glass (3) (non-illustrated) Appelez-nous -
33A 5308009648 Gasket-crisper Cover Appelez-nous -
41A 5303211351 Lock-rear Trim (non-illustrated) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

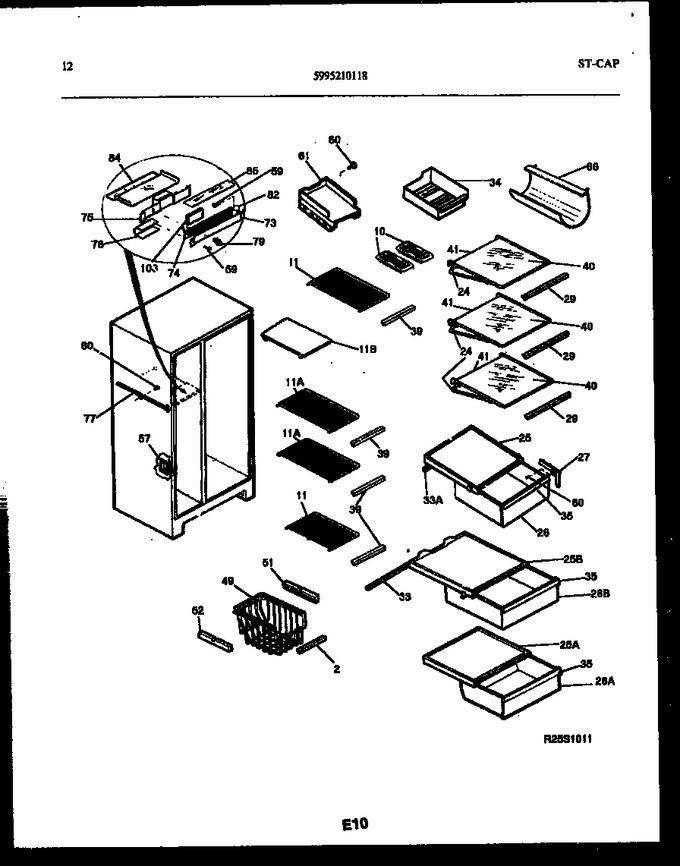

Diagram for FPCE22V3PW0
