Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 383957 Pump, Complete (non Suds) Appelez-nous -
2 WP273556 Screw, 10-12 X 5/8   (Replaces: 273556) In-Stock Immediately $ 7.04

3 96175 Sleeve Appelez-nous -
4 96266 Spring, Toggle Appelez-nous -
11 359630 Pulley, Pump Appelez-nous -
12 355538 Lever, Valve Appelez-nous -
13 96264 Rod, Connecting Appelez-nous -
14 383750 Bearing Block Assembly Appelez-nous -
15 96265 Wick, Oil Appelez-nous -

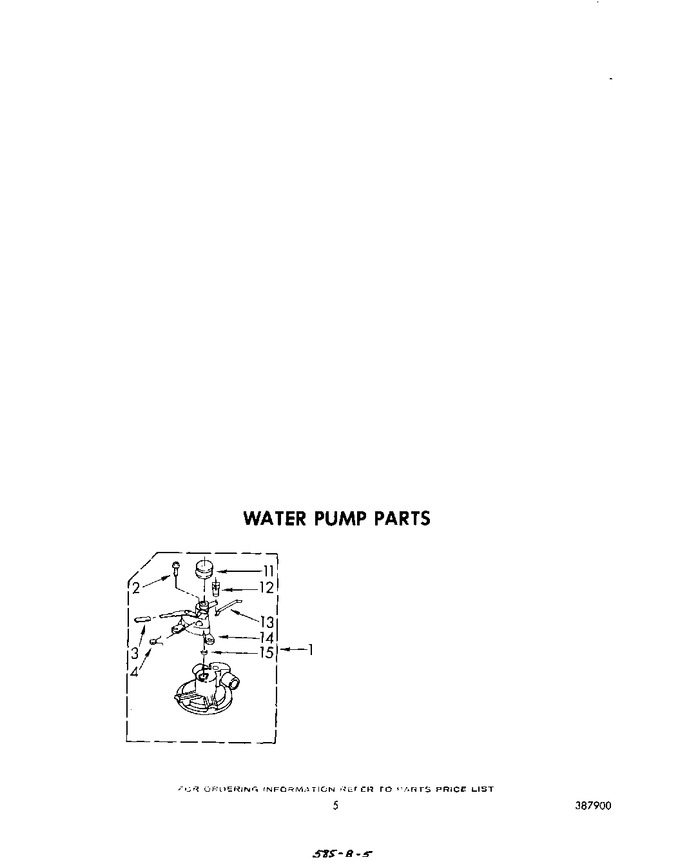

    View Diagram in Separate Window     Print Icon   Print Part List
