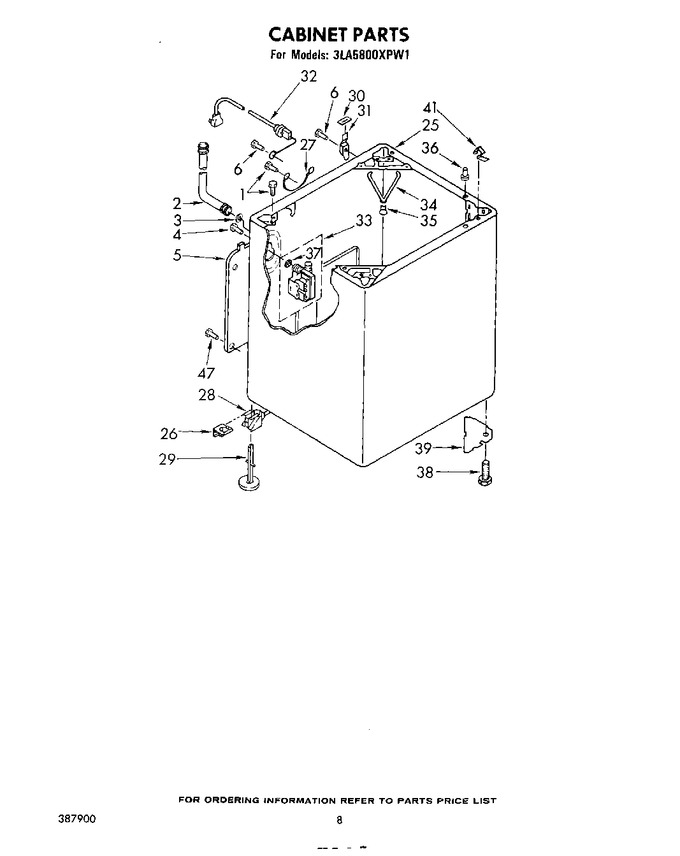

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw, 10-16 X 1/2   (Replaces: 359262)			Immediately	$ 7.07
2	WP89503		Hose, Inlet (2)   (Replaces: 81339)			Immediately	$ 21.68
3	WP16123		Washer, Rubber (4)   (Replaces: 16123)				$ 6.93
4	WP3390631		Screw, No. 10-16 X 3/8   (Replaces: 62863)				$ 7.04
5	85279		Panel, Rear		Appelez-nous	-
6	WP681414		Screw, No.10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
25	386477		Cabinet (toast)		Appelez-nous	-
25	386478		Cabinet (platinum)		Appelez-nous	-
25	384793		Cabinet (white)		Appelez-nous	-
25	384794		Cabinet (almond)		Appelez-nous	-
25	384797		Cabinet (golden Harvest)		Appelez-nous	-
26	WP359364		Clip, Leveling Mechanism (2)   (Replaces: 359364)			Immediately	$ 7.06
27	364089		Wire, Ground		Appelez-nous	-
28	359059		Leveling Link Assembly		Appelez-nous	-
29	WP358594		Foot, Rear (2)   (Replaces: 358594)				$ 12.24
30	18849		Pad, Hinge (2)				$ 18.13
31	18775		Hinge, R.h.		Appelez-nous	-
31	92657		Hinge, L.h.		Appelez-nous	-
32	92667		Cord, Power (120 Volt)		Appelez-nous	-
33	285874		Valve, Mixing (serviced Only As Complete Assemblies)   (Replaces: 387876)				$ 183.31
34	358336		Spring, Snubber   (Replaces: 357977)			Immediately	$ 4.80
35	358336		Snubber			Immediately	$ 4.80
36	98669		Locator, Top (2)				$ 12.03
37	WP96160		Screen, Filter   (Replaces: 96160)				$ 10.54
38	WP367594		Foot, Front (2)   (Replaces: 367594)			Immediately	$ 18.46
39	356459		Plate, Gusset (2)		Appelez-nous	-
41	WP18776		Lock, Front Top (2)   (Replaces: 18776)			Immediately	$ 11.41
47	WP681414		Screw, 10-16 X 1/2   (Replaces: 687128)			Immediately	$ 7.07
