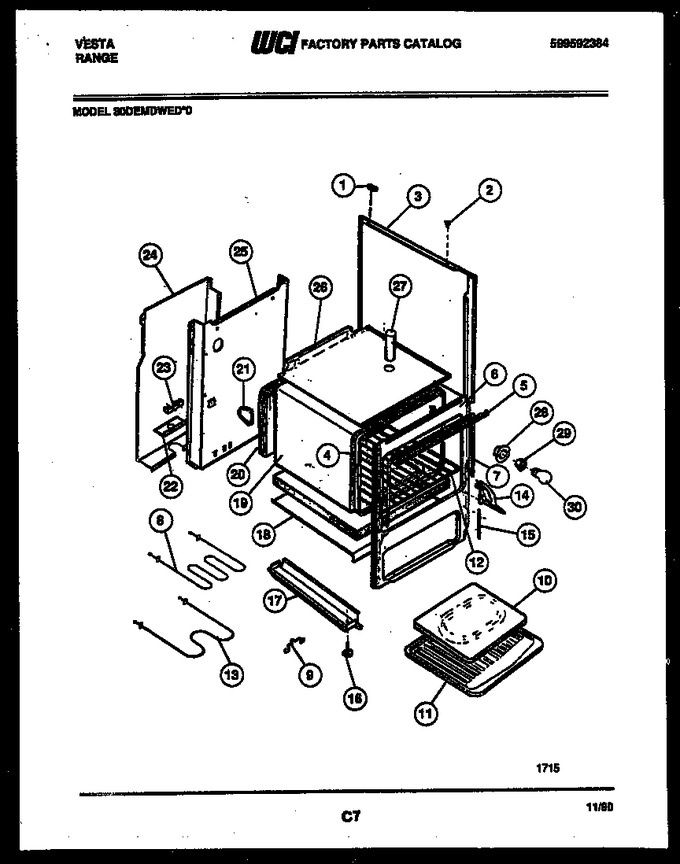

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3205587		Grommet-main Top (2)		Appelez-nous	-
2	3051063		Grommet (2)		Appelez-nous	-
3	5303051061		Panel-side-white (2)		Appelez-nous	-
3	08014019		Body Side Panel (almond)		Appelez-nous	-
4	3016533		Liner-oven Rh		Appelez-nous	-
5	3131811		Support-control Panel		Appelez-nous	-
6	3205578		Front - Frame		Appelez-nous	-
7	5308008022		Seal-door				$ 124.89
8	5303009293		Element-broil		Appelez-nous	-
9	5303009445		Support-broil Element		Appelez-nous	-
10	5303017712		Insert-broiler		Appelez-nous	-
11	5303016973		Broiler-pan		Appelez-nous	-
12	5303015714		Rack Oven (2)		Appelez-nous	-
13	5303017027		Element-bake		Appelez-nous	-
14	5303204670		Hinge Rh		Appelez-nous	-
15	5308008028		Spring (2)		Appelez-nous	-
16	5303051080		Leveling Leg (4)		Appelez-nous	-
17	5308068047		Base-rail (2)		Appelez-nous	-
18	08013990		Pan-insulation		Appelez-nous	-
19	3017029		Insulation - Wrap		Appelez-nous	-
20	3017028		Insulation Back		Appelez-nous	-
21	3051096		Support-oven (2)		Appelez-nous	-
22	3205588		Support-conduit		Appelez-nous	-
23	5304409888		Terminal Block   (Replaces: 5306563359)			Immediately	$ 26.69
24	3205593		Cover - Back		Appelez-nous	-
25	3205592		Main - Back		Appelez-nous	-
26	11088003		Burner Box		Appelez-nous	-
27	3051064		Vent Tube		Appelez-nous	-
28	3051511		Tube - Oven Light				$ 60.22
29	5303009410		Receptacle		Appelez-nous	-
30	40A15		Bulb   (Replaces: 5303013071)			Immediately	$ 1.98
*43735	3934059		Anti-tip Kit		Appelez-nous	-
13A	19100210113		Diagram-wiring (not For Purchase) (non-illustrated)		Appelez-nous	-
14A	5303204672		Hinge Lh		Appelez-nous	-
4A	3017599		Liner-oven Lh		Appelez-nous	-
4B	3017789		Liner - Top		Appelez-nous	-
4C	3205655		Liner - Back		Appelez-nous	-
4D	3017787		Liner - Bottom		Appelez-nous	-
