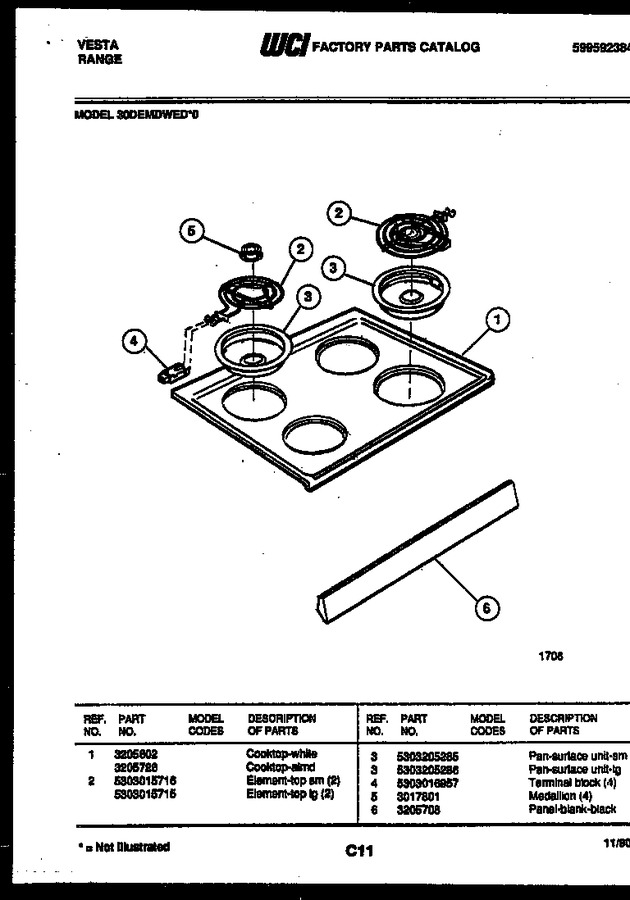

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Body Parts
03 - Door Parts
04 - Drawer Parts
05 - Cooktop Parts
06 - Backguard
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3205726 | Cooktop - Almd |
|
- | |||||
| 1 | 3205602 | Cooktop - White |
|
- | |||||
| 2 | 318372210 | Element-top Sm (2) (Replaces: 5303015716) |
|
Immediately | $ 20.21 | ||||
| 3 | 5303205286 | Pan-surface Unit - (lg.) |
|
- | |||||
| 3 | 5303205285 | Pan-surface Unit-sm |
|
- | |||||
| 4 | 5303016957 | Terminal Block (4) |
|
- | |||||
| 5 | 3017801 | Medallion (4) |
|
- | |||||
| 6 | 3205708 | Panel - Blank (black) |
|
- | |||||
| 2A | 316442300 | Element-top Lg (2) (Replaces: 5303015715) |
|
Immediately | $ 59.16 |
