Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3018639 Panel-interior Appelez-nous -
2 5303001022 Bearing-hinge Upper Appelez-nous -
3 5303200272 Closer-door Appelez-nous -
4 5308002748 Screw Appelez-nous -
5 3201526 Nameplate Appelez-nous -
7 5303273123 Handle-door-almond Appelez-nous -
8 5303272568 Screw-almond Appelez-nous -
11 5315230801 Button-plug Appelez-nous -
12 5308000790 Bumper, Light Switch Special Order $ 3.86

13 5303001020 Screw No. 8-32 X 1/2 Appelez-nous -
14 5303201013 Gasket-magnetic Appelez-nous -
15 5308012007 Bearing-hinge Appelez-nous -
17 5303206719 Support-door Rack-rh (2) Appelez-nous -
18 5303206605 Support-door Rack-lh (2) Appelez-nous -
19 5303206715 Rack-door (2) Appelez-nous -
20 5303018635 Tray, Egg Appelez-nous -
21 3018636 Door-compartment Appelez-nous -
22 3018637 Door-compartment Appelez-nous -
23 3018638 Rack-door (3) Appelez-nous -
24 5303323480 Support Door Lh (3)   (Replaces: 5303017378) Special Order $ 14.18

25 5303323481 Support Door Rh (3)   (Replaces: 5303017381) In-Stock Immediately $ 14.18

26 5303018743 Dish, Butter Appelez-nous -
27 5300900893 Panel-refr Almond Appelez-nous -

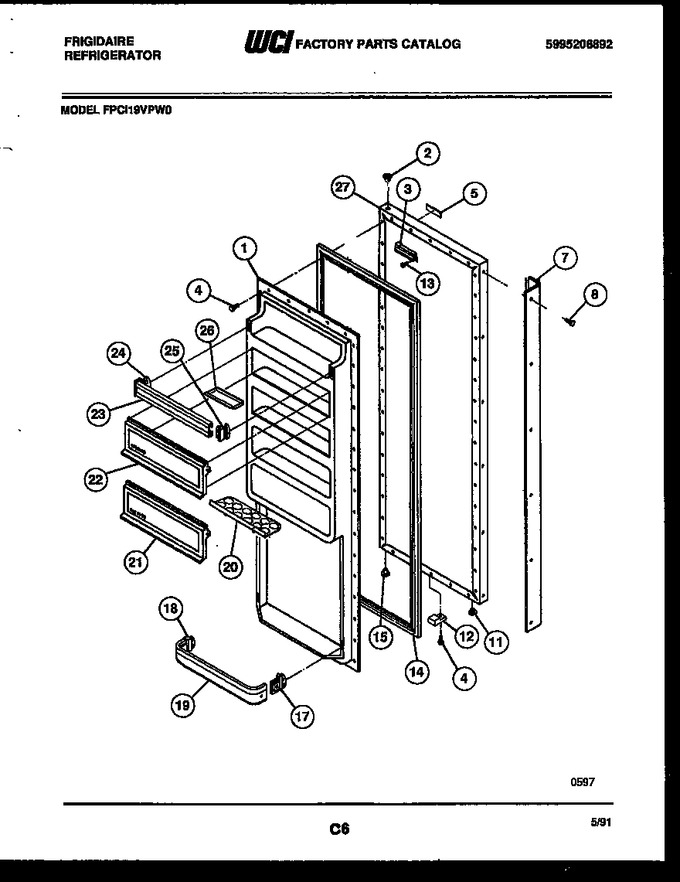

    View Diagram in Separate Window     Print Icon   Print Part List
