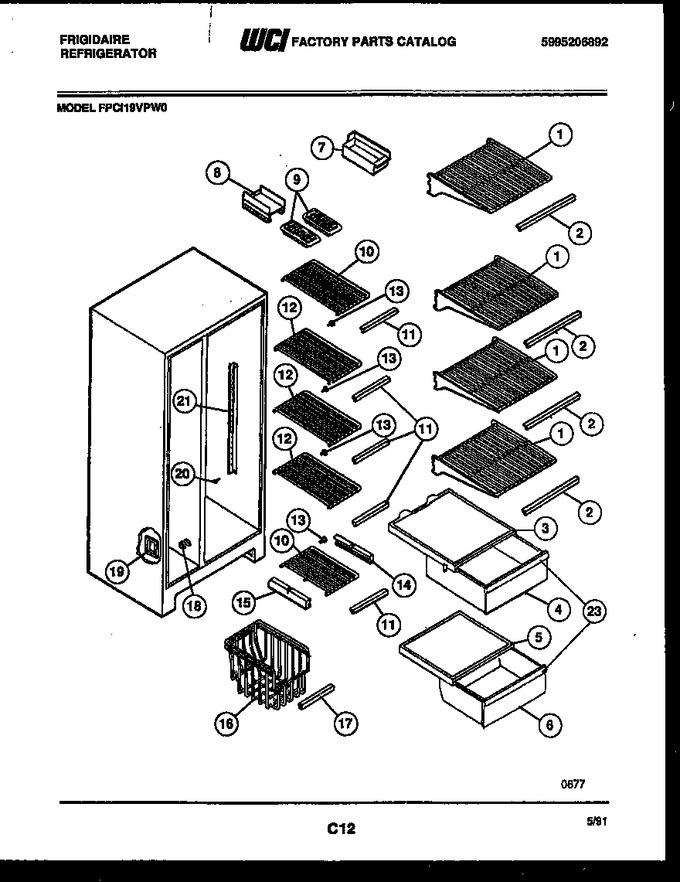

02 - Refrigerator Door Parts


03 - Freezer Door Parts


04 - Cabinet Parts


05 - Shelves And Supports


06 - Refrigerator Control Assembly, Damp


07 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303209715		Shelf-refrigerator (4)		Appelez-nous	-
2	5303273190		Trim-shelf (4)		Appelez-nous	-
3	3018647		Cover-crisper Upper		Appelez-nous	-
4	3018648		Pan-storage Upper		Appelez-nous	-
5	3018649		Cover-crisper Lower		Appelez-nous	-
6	3018650		Pan-storage Lower		Appelez-nous	-
7	5303212895		Container, Ice		Appelez-nous	-
8	08009824		Compartment-ice Tray		Appelez-nous	-
9	01121808		Ice Tray, Plastic		Appelez-nous	-
10	08000905		Shelf-freezer (2)		Appelez-nous	-
11	5303273189		Trim-shelf (5)		Appelez-nous	-
12	08000906		Shelf-freezer (3)		Appelez-nous	-
13	5304509705		Grommet-shelf Mounting (10)   (Replaces: 5303001609)				$ 10.01
14	5303001098		Hanger, Basket, Rh		Appelez-nous	-
15	5303001099		Hanger, Basket, Lh		Appelez-nous	-
16	5308017594		Basket-sliding		Appelez-nous	-
17	3018651		Trim-basket		Appelez-nous	-
18	5303001287		Ferrule-outer		Appelez-nous	-
19	5303271652		Ferrule-outer		Appelez-nous	-
20	5303001041		Screw (4)		Appelez-nous	-
21	5308002744		Channel-shelf Mounting (2)		Appelez-nous	-
23	3018750		Trim-pan (2)		Appelez-nous	-
18A	5303001286		Ferrule-inner (non-illustrated)		Appelez-nous	-
19A	5303271653		Ferrule-inner (non-illustrated)				$ 20.27
3A	3018752		Gasket-crisper Cover (non-illustrated)		Appelez-nous	-
8A	5308010253		Screw Mtg (2) (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
