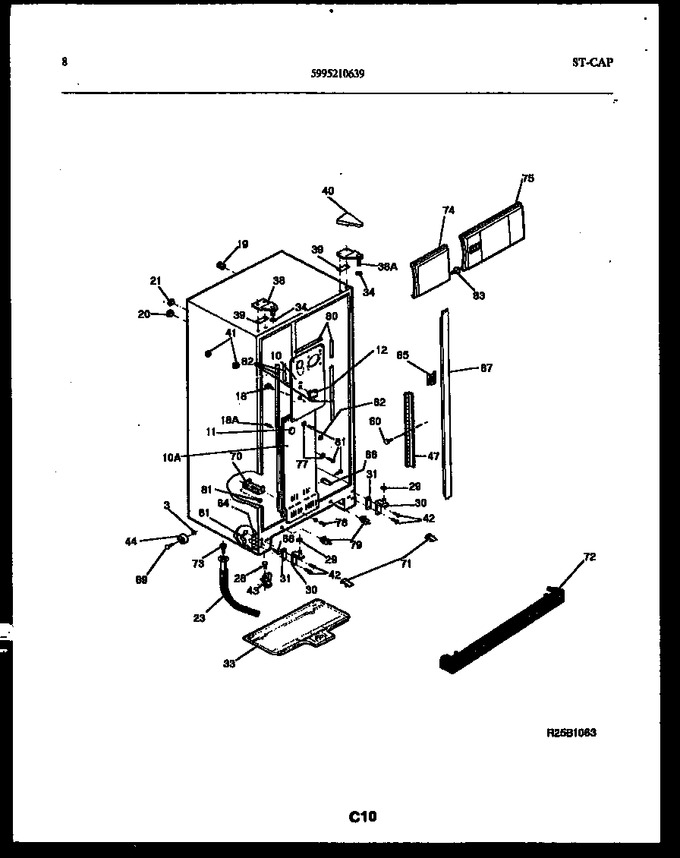

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
60	5308010253		Screw		Appelez-nous	-
61	5300077210		Nut, Stud Speed, .094, (2)		Appelez-nous	-
62	5303001231		Clip-grounding		Appelez-nous	-
63	5303001213		Support-light Shield, (4)		Appelez-nous	-
64	5303001273		Nut-special Twin (4)		Appelez-nous	-
65	5303001281		Clip-mullion Mtg, (3)		Appelez-nous	-
66	5316491203		Damper, Meat Keeper		Appelez-nous	-
67	5303916448		Mullion, Almond		Appelez-nous	-
68	5308000013		Pin, Shoulder, 3/32 X 5/8, (2)		Appelez-nous	-
69	5308000266		Pin, Roller (2)		Appelez-nous	-
70	5308000738		Bracket-cover Mtg		Appelez-nous	-
71	5308000091		Clip-grille (2)				$ 14.57
72	5303016726		Grille/kickplate		Appelez-nous	-
73	5308000853		Conductor-heat		Appelez-nous	-
74	08009614		Shield-light Freezer		Appelez-nous	-
75	5303271664		Shield-light, Refrigerator		Appelez-nous	-
77	5303001216		Washer-nylon, 3/16 X 5/8 Od, (8)		Appelez-nous	-
78	5303274237		Screw-bracket, Hex Washer Head, 8-32(ca) X 1/2		Appelez-nous	-
79	5309918810		Switch-light		Appelez-nous	-
80	5303001219		Gasket-coil Cover (2)		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
82	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
*55586	5308017046		Clip-wiring Harness		Appelez-nous	-
*55586	5308016571		Button Plug-liner				$ 4.79
65A	5300169100		Clip-mullion Mtg, (3) (non-illustrated)		Appelez-nous	-
75A	08009976		Label-ref Light Shld, Lh (non-illustrated)		Appelez-nous	-
75B	08009977		Label-ref Light Shld, Rh (non-illustrated)		Appelez-nous	-
78A	5308009617		Washer, Ext Tooth Lock, No. 10 (non-illustrated)		Appelez-nous	-
79A	08009775		Clip-cable, Light Switch (non-illustrated)		Appelez-nous	-
