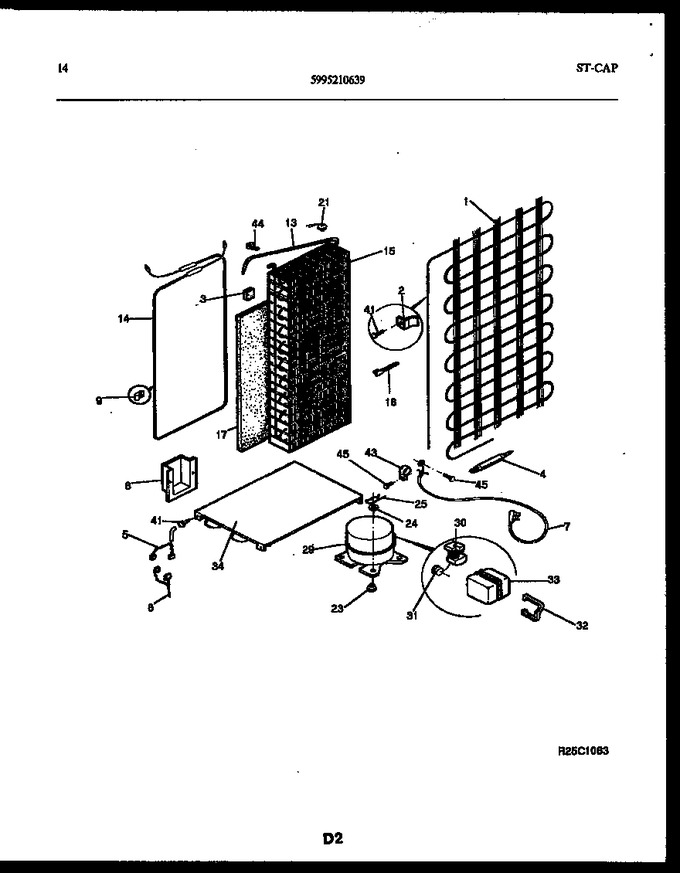

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308017228 | Condenser |
|
- | |||||
| 2 | 5303001342 | Bracket, Cond Mtg |
|
- | |||||
| 3 | 5308000828 | Block-coil (4) |
|
- | |||||
| 4 | 5303305677 | Drier-filter (Replaces: 5308000027) |
|
Immediately | $ 31.67 | ||||
| 5 | 5303015098 | Wiring Harness, Controls |
|
- | |||||
| 6 | 5308009616 | Wiring Harness, Compr/light Sw |
|
- | |||||
| 7 | 5316254901 | Cord, Elec Service |
|
- | |||||
| 8 | 5303001197 | Cover-wiring |
|
- | |||||
| 9 | 5308002777 | Support-defrost Htr |
|
- | |||||
| 13 | 5308017565 | Heat Exchanger, Suction Line |
|
- | |||||
| 14 | 5303007568 | Heater, Defrost |
|
$ 233.05 | |||||
| 15 | 5303916605 | Evaporator Coil |
|
- | |||||
| 16 | 5308000110 | Strap-evap/heater, Aluminum |
|
Immediately | $ 59.82 | ||||
| 17 | 5303001235 | Insulator-evap |
|
- | |||||
| 21 | 5303917954 | Thermostat, Defrost (Replaces: 5303007540) |
|
Immediately | $ 30.47 | ||||
| 23 | 5308008778 | Grommet, Compr Mtg, (4) |
|
- | |||||
| 24 | 5308003633 | Washer-compr Mtg |
|
$ 35.67 | |||||
| 25 | 5308003596 | Clip - Compressor Mtg |
|
$ 6.62 | |||||
| 29 | 5308950223 | Compressor-w/ Elec, Service |
|
- | |||||
| 30 | 5303007173 | Relay |
|
$ 207.43 | |||||
| 31 | 5303271616 | Overload |
|
$ 85.20 | |||||
| 32 | 5303006412 | Strap-cover |
|
- | |||||
| 33 | 5303006411 | Cover, Terminal |
|
- | |||||
| 34 | 5300188724 | Defrost Plate & Tube Assy |
|
- | |||||
| 41 | 5308000039 | Screw |
|
- | |||||
| 43 | 5303001199 | Clamp |
|
$ 65.92 | |||||
| 44 | 240396801 | Clamp, Nylon (Replaces: 5308000133) |
|
$ 19.13 | |||||
| 45 | 5304455651 | Screw (Replaces: 5303001343) |
|
$ 14.41 | |||||
| *55592 | 5308009619 | Insulator-frzr Coil-top |
|
- | |||||
| *55592 | 5300189379 | Hot Tube Repair Kit, Service |
|
- | |||||
| *55592 | 5300141713 | Screw-clamp Mtg, Spcl Hx Wshr Hd, 8-32 X 5/8 |
|
- | |||||
| *55592 | 218843801 | Screw (Replaces: 5303001001) |
|
$ 14.41 | |||||
| 15A | 3206414 | Tube-inlet (non-illustrated) |
|
$ 31.61 | |||||
| 29A | 5303916391 | Capacitor-run (non-illustrated) |
|
- | |||||
| 2A | 5308009617 | Washer, Ext Tooth Lock, No. 10 (non-illustrated) |
|
- |
