SELECT A DIAGRAM

01 - Blower


02 - Control Panel


03 - Pump & Motor


04 - Racks


05 - Rinse Aid Assembly


06 - Tub

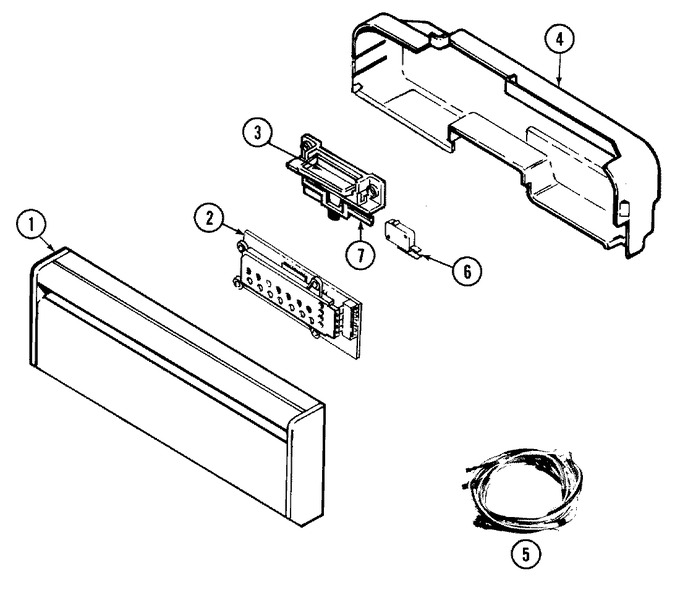

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	903894		Panel, Control (wht)	A0	Appelez-nous	-
1	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	A0		Immediately	$ 6.90
1	99001285		Panel, Control (wht)	B4	Appelez-nous	-
2	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	A0		Immediately	$ 6.90
2	903926		Pcb & Mtg. Plate Assy.	A0	Appelez-nous	-
2	Y913181		Shield, Pcb (plastic Film)	A0	Appelez-nous	-
2	99001001		Pcb & Mounting Plate Assy.	A5	Appelez-nous	-
3	12001118		Kit, Latch Handle (wht)	A9	Appelez-nous	-
3	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	A0		Immediately	$ 6.90
3	Y912664		Holder, Door Switch	A0			$ 38.66
4	Y912667		Barrier, Control Panel	A0	Appelez-nous	-
5	Y913176		Clip, Wire Harness	A0	Appelez-nous	-
5	903542		Wire Harness, Main-canada	A0	Appelez-nous	-
5	315471		Retainer, Wire	A6	Appelez-nous	-
5	99001053		Wire Harness, Main	A6	Appelez-nous	-
6	99002254		Switch, Door   (Replaces: 903086)	A0			$ 116.79
7	Y912793		Handle, Latch (wht)	A0	Appelez-nous	-
7	12001118		Kit, Latch Handle (wht)	A9	Appelez-nous	-
8	Y913026		Manual, Use & Care (french)	A0	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
