SELECT A DIAGRAM

01 - Blower


02 - Control Panel


03 - Pump & Motor


04 - Racks


05 - Rinse Aid Assembly


06 - Tub

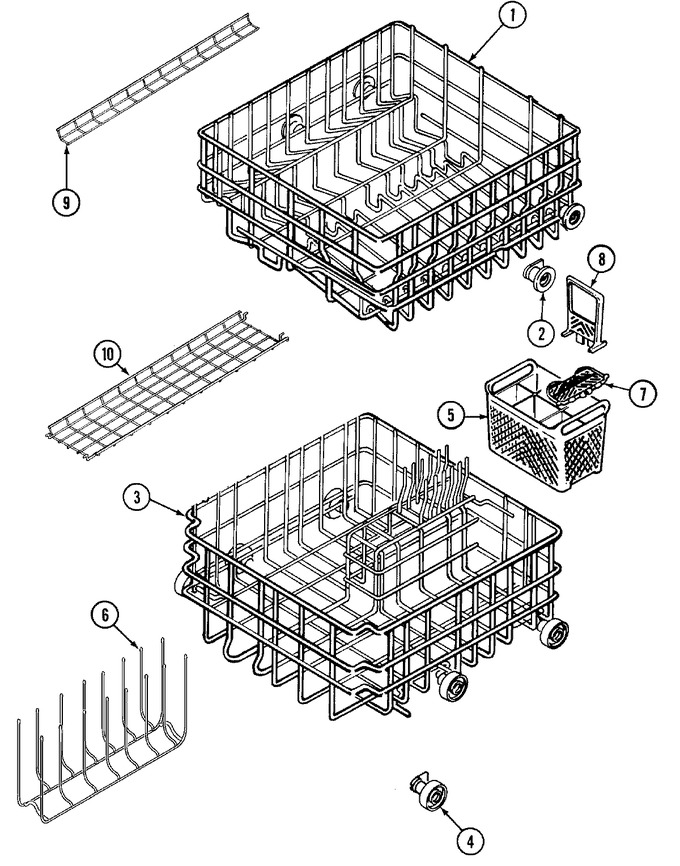

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	903918		Rack (upr)	A0	Appelez-nous	-
2	WP903093		Wheel Assembly (upr)   (Replaces: 903093)	A0		Immediately	$ 9.65
3	903923		Rack (lwr)	A0	Appelez-nous	-
4	903815		Wheel Assembly (lwr)	A0			$ 14.89
5	WP6-918873		Basket, Silverware (w/cover)   (Replaces: 903446)	A0		Immediately	$ 54.28
6	903859		Insert, Lower Rack	A0	Appelez-nous	-
7	WP6-918873		Cover, Silverware Basket   (Replaces: 912639)	A0		Immediately	$ 54.28
8	Y912708		Handle, Silverware Basket	A0	Appelez-nous	-
9	Y912984		Clip, Upper Rack Shelf	A0	Appelez-nous	-
9	903861		Shelf, Upper Rack	A0	Appelez-nous	-
