SELECT A DIAGRAM

01 - Blower


02 - Cabinet & Faucet Coupler Assy.


03 - Control Panel


04 - Door


05 - Faucet Adapter Kit (inside Threaded)


06 - Faucet Adapter Kit (outside Threaded)


07 - Faucet Adapter Kit (unthreaded)


08 - Pump & Motor


09 - Racks


10 - Rinse Aid & Soap Dispenser


11 - Tub


12 - Wiring Information

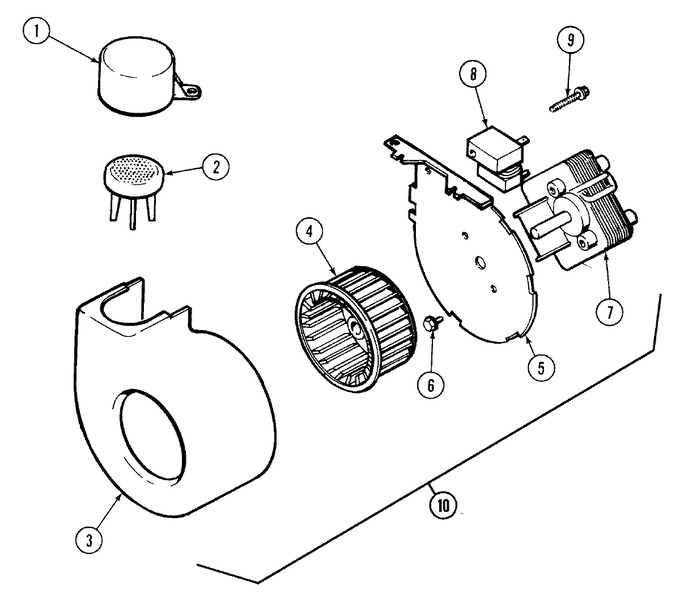

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	912622		Screw	A0	Appelez-nous	-
1	Y912659		Cap, Air Inlet	A0	Appelez-nous	-
2	Y912660		Screen, Blower Valve	A0	Appelez-nous	-
3	912556		Housing, Blower	A0	Appelez-nous	-
4	902902		Wheel, Blower	A0	Appelez-nous	-
5	912557		Plate, Blower	A0	Appelez-nous	-
6	WP489128		Screw   (Replaces: 912365)	A0			$ 9.79
7	902900		Motor, Blower	A0	Appelez-nous	-
8	902460		Relay,motor	A0	Appelez-nous	-
9	912612		Screw, Relay	A0	Appelez-nous	-
10	WP489128		Screw   (Replaces: 912365)	A0			$ 9.79
10	903767		Blower Assy	A0	Appelez-nous	-
