SELECT A DIAGRAM

Diagram for 01 - Blower
01 - Blower

Diagram for 02 - Cabinet & Faucet Coupler Assy.
02 - Cabinet & Faucet Coupler Assy.

Diagram for 03 - Control Panel
03 - Control Panel

Diagram for 04 - Door
04 - Door

Diagram for 05 - Faucet Adapter Kit (inside Threaded)
05 - Faucet Adapter Kit (inside Threaded)

Diagram for 06 - Faucet Adapter Kit (outside Threaded)
06 - Faucet Adapter Kit (outside Threaded)

Diagram for 07 - Faucet Adapter Kit (unthreaded)
07 - Faucet Adapter Kit (unthreaded)

Diagram for 08 - Pump & Motor
08 - Pump & Motor

Diagram for 09 - Racks
09 - Racks

Diagram for 10 - Rinse Aid & Soap Dispenser
10 - Rinse Aid & Soap Dispenser

Diagram for 11 - Tub
11 - Tub

Diagram for 12 - Wiring Information
12 - Wiring Information


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
NI 15001678 Wiring Information A0 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

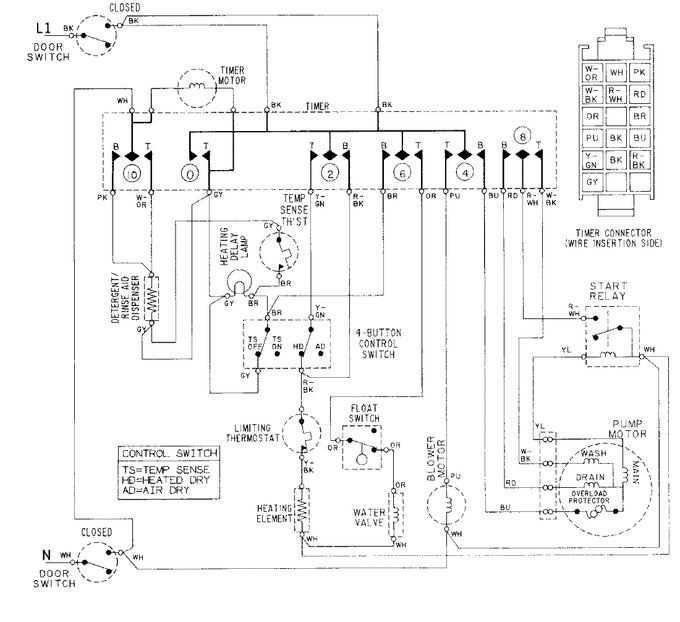

Diagram for DWC7400ABW
