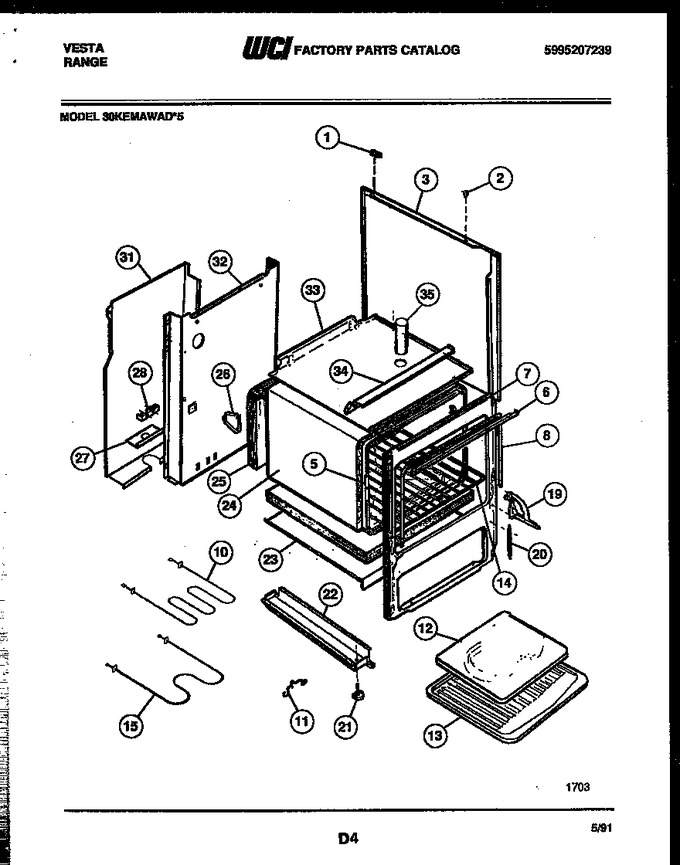

02 - Body Parts
03 - Drawer Parts
04 - Door Parts
05 - Backguard And Cooktop Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3205587 | Grommet-main Top (2) |
|
- | |||||
| 2 | 3051063 | Grommet (2) |
|
- | |||||
| 3 | 5303051061 | Panel-side-white (2) |
|
- | |||||
| 5 | 3016533 | Liner-oven Rh |
|
- | |||||
| 6 | 3131811 | Support-control Panel |
|
- | |||||
| 7 | 3205578 | Front - Frame |
|
- | |||||
| 8 | 5308008022 | Seal-door |
|
$ 124.89 | |||||
| 10 | 5303009293 | Element-broil |
|
- | |||||
| 11 | 5303009445 | Support-broil Element |
|
- | |||||
| 12 | 5303017712 | Insert-broiler |
|
- | |||||
| 13 | 5303016973 | Broiler-pan |
|
- | |||||
| 14 | 5303015714 | Rack Oven (2) |
|
- | |||||
| 15 | 5303017027 | Element-bake |
|
- | |||||
| 19 | 5303204670 | Hinge Rh |
|
- | |||||
| 20 | 5303009435 | Spring (2) |
|
- | |||||
| 21 | 318175510 | Leveling Leg (4) (Replaces: 5303210257) |
|
Immediately | $ 24.26 | ||||
| 22 | 5303210255 | Base Rail Rh (1) |
|
- | |||||
| 23 | 08013990 | Pan-insulation |
|
- | |||||
| 24 | 3017029 | Insulation - Wrap |
|
- | |||||
| 25 | 3017028 | Insulation Back |
|
- | |||||
| 26 | 3051096 | Support-oven (2) |
|
- | |||||
| 27 | 3205588 | Support - Consuit |
|
- | |||||
| 28 | 5304409888 | Terminal Block (Replaces: 5306563359) |
|
Immediately | $ 26.69 | ||||
| 31 | 3205593 | Cover - Back |
|
- | |||||
| 32 | 5303274003 | Main-back |
|
- | |||||
| 33 | 11088003 | Burner Box |
|
- | |||||
| 34 | 3017034 | Shield-switch |
|
- | |||||
| 35 | 3051064 | Vent Tube |
|
- | |||||
| *49942 | 5303210892 | Retainer-counter Weight (2) |
|
- | |||||
| *49942 | 5303210891 | Weight-cement Block Anti-tip (2) |
|
- | |||||
| *49942 | 3934059 | Anti - Tip Bracket |
|
- | |||||
| *49943 | 19100210113 | Wiring Diagram (not For Purchase) |
|
- | |||||
| 19A | 5303204672 | Hinge Lh |
|
- | |||||
| 22A | 5303210256 | Base Rail Lh (1) |
|
- | |||||
| 5A | 3017599 | Liner-oven Lh |
|
- | |||||
| 5B | 3017789 | Liner - Top |
|
- | |||||
| 5C | 3017788 | Liner - Back |
|
- | |||||
| 5D | 3017787 | Liner - Bottom |
|
- |
