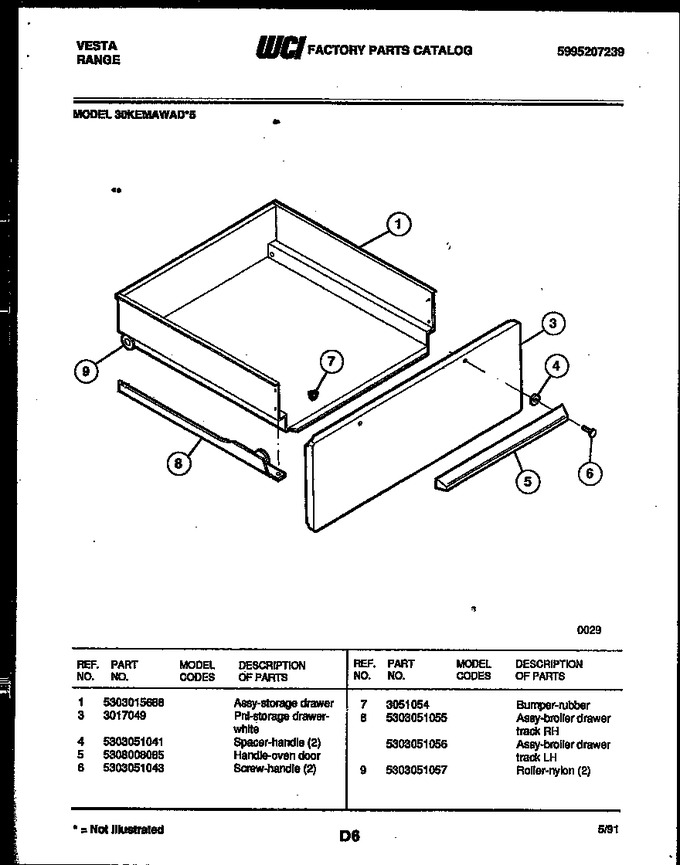

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Body Parts
03 - Drawer Parts
04 - Door Parts
05 - Backguard And Cooktop Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303015688 | Assy-storage Drawer |
|
- | |||||
| 3 | 3017049 | Pnl - Storage Drawer (white) |
|
- | |||||
| 4 | 5303051041 | Spacer-handle (2) |
|
- | |||||
| 5 | 5308008085 | Handle-oven Door |
|
- | |||||
| 6 | 5303051043 | Screw-handle (2) |
|
- | |||||
| 7 | 3051054 | Bumper Rubber |
|
- | |||||
| 8 | 5303051055 | Assy-broiler Drawer Track Rh |
|
$ 56.60 | |||||
| 9 | 5303051057 | Roller-nylon (2) |
|
- | |||||
| 8A | 5303051056 | Assy-broiler Drawer Track Lh |
|
$ 78.44 |
