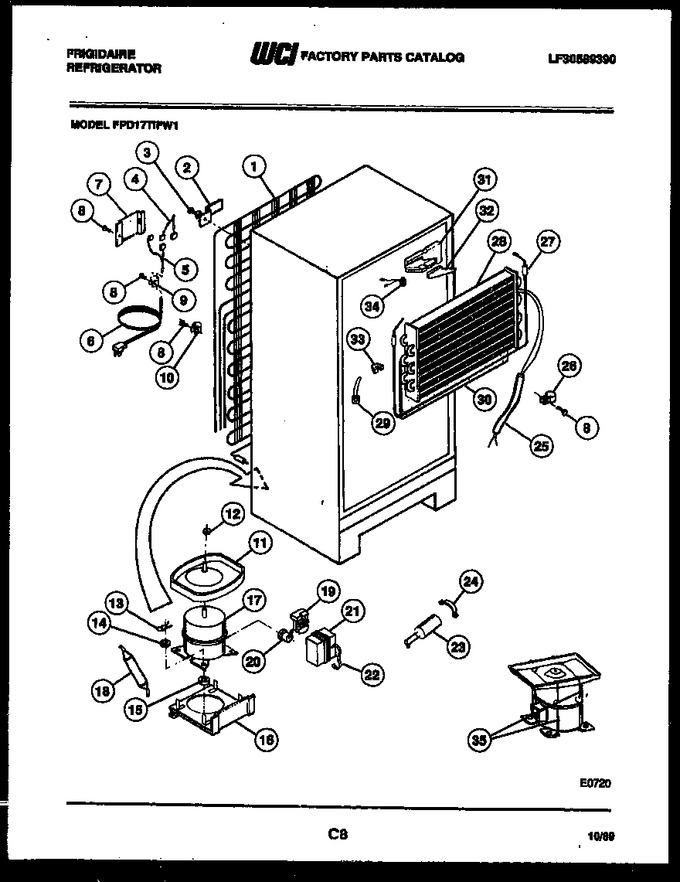

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08009262		Condenser		Appelez-nous	-
2	08003600		Bracket-cond Mtg (4)		Appelez-nous	-
3	08000039		Screw		Appelez-nous	-
4	3018900		Wiring Harness, Divider		Appelez-nous	-
5	08009628		Wiring Harness, Compressor		Appelez-nous	-
6	08000064		Service Cord		Appelez-nous	-
7	08013644		Cover-wiring		Appelez-nous	-
8	08016629		Screw- 8-15 X 1/2		Appelez-nous	-
9	08002756		Clamp-harness (2)		Appelez-nous	-
10	08000187		Clamp-compr Harness		Appelez-nous	-
11	08012951		Pan-defrost		Appelez-nous	-
12	08003611		Lock Nut-pan Mtg		Appelez-nous	-
13	08003596		Clip (4)		Appelez-nous	-
14	08003597		Washer (4)		Appelez-nous	-
15	08008778		Grommet (4)		Appelez-nous	-
16	08013663		Plate-compr Mtg		Appelez-nous	-
17	3916004		Compressor With Electricals		Appelez-nous	-
18	08000027		Drier-filter		Appelez-nous	-
19	08017226		Relay		Appelez-nous	-
20	08017572		Overload		Appelez-nous	-
21	08006982		Cover-terminal		Appelez-nous	-
22	08000117		Strap-term Cover		Appelez-nous	-
23	08017535		Capacitor-compr Run		Appelez-nous	-
24	08017231		Strap-cap Mtg		Appelez-nous	-
25	08010274		Heat Exchanger		Appelez-nous	-
26	08008782		Clamp-exchanger		Appelez-nous	-
27	08009754		Heater-defrost		Appelez-nous	-
28	08009756		Evaporator Coil		Appelez-nous	-
29	08000110		Strap-evap/heater (2)		Appelez-nous	-
30	08009638		Insulator-evap		Appelez-nous	-
31	08013648		Insulation Block Rs		Appelez-nous	-
32	08013646		Insulation Plug Rs		Appelez-nous	-
33	08017227		Insulation Block Ls		Appelez-nous	-
34	08000073		Thermostat		Appelez-nous	-
35	08950024		Pan Retainer Kit		Appelez-nous	-
*27609	09960001		Hot Tube Repair Kit		Appelez-nous	-
