02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

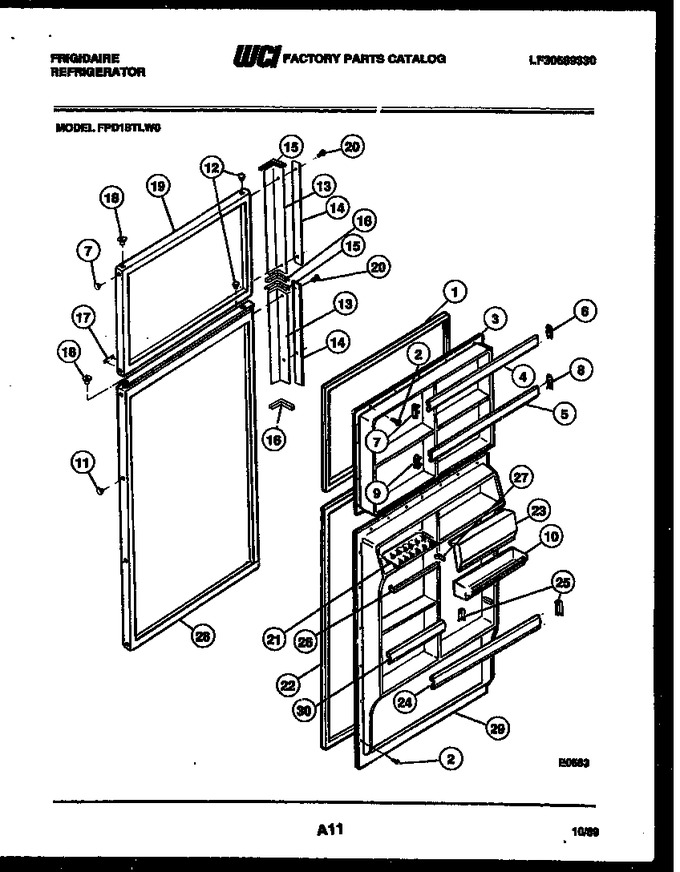

| 1 | 3206462 | Gasket-freezer |
|
- | |||||
| 2 | 08002748 | Screw |
|
- | |||||
| 3 | 3206463 | Panel-inner-freezer |
|
- | |||||
| 4 | 3206464 | Rack-top (2) |
|
- | |||||
| 5 | 3206465 | Rack-btm Wide |
|
- | |||||
| 6 | 3017381 | Support Rh |
|
- | |||||
| 7 | 3017378 | Support-lh |
|
- | |||||
| 8 | 3205650 | Support-rh |
|
- | |||||
| 9 | 3205648 | Support-lh |
|
- | |||||
| 10 | 08009837 | Bin-utility |
|
- | |||||
| 11 | 08000179 | Button-plug, Avocado |
|
- | |||||
| 12 | 08000175 | Button-plug, Avocado |
|
- | |||||
| 13 | 3017190 | Handle-complete (2) |
|
- | |||||
| 14 | 08010232 | Trim (2) |
|
- | |||||
| 15 | 08010239 | Cap-top (2) |
|
- | |||||
| 16 | 08010238 | Cap-bottom (2) |
|
- | |||||
| 17 | 3201526 | Nameplate |
|
- | |||||
| 18 | 3206153 | Bearing (8) |
|
- | |||||
| 19 | 3916607 | Panel-freezer-avoc |
|
- | |||||
| 20 | 08013645 | Screw (4) |
|
- | |||||
| 21 | 08010383 | Tray-egg (not Original Equipment. Customer Purchase Onl |
|
- | |||||
| 22 | 3206466 | Gasket-refr |
|
- | |||||
| 23 | 3018974 | Door-dairy |
|
- | |||||
| 24 | 3206468 | Rack-refr Door |
|
- | |||||
| 25 | 5303325990 | Support-rh (2) (Replaces: 3203262) |
|
Immediately | $ 17.01 | ||||
| 26 | 3206470 | Rack-refr Door |
|
- | |||||
| 27 | 3017381 | Support Rh |
|
- | |||||
| 28 | 3916612 | Panel-refr-avoc |
|
- | |||||
| 29 | 3206467 | Panel-inner-refr |
|
- | |||||
| 30 | 3206469 | Rack-refr Door |
|
- | |||||
| *26884 | 3007739 | Insulation-door (bulk) |
|
- | |||||
| *26884 | 08000255 | Stop-doors |
|
- | |||||
| 25A | 5303325991 | Support-lh (2) (non-illustrated) (Replaces: 3203263) |
|
$ 17.01 | |||||
| 27A | 3017378 | Support Lh (non-illustrated) |
|
- |
