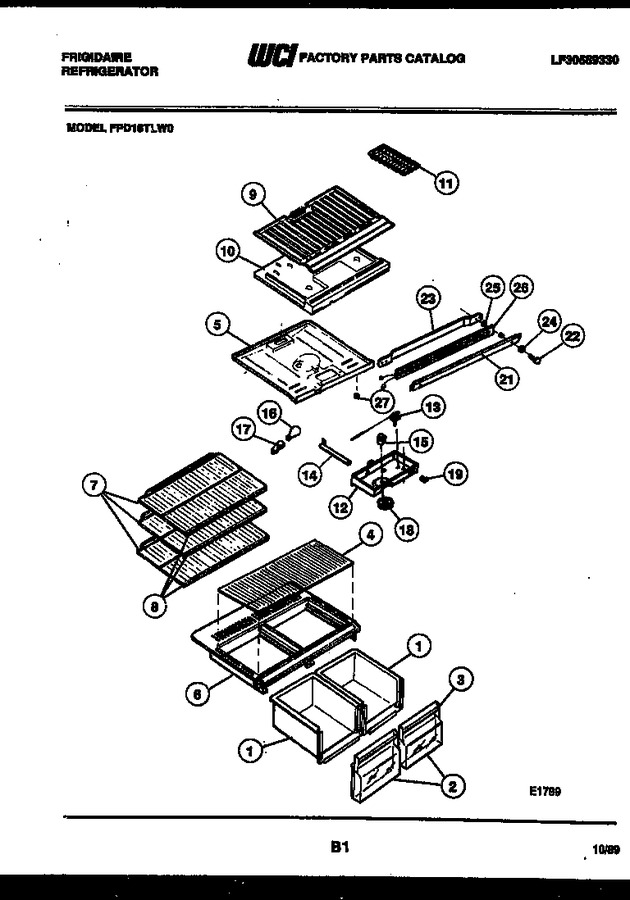

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3206438		Pan-crisper (2)			Immediately	$ 227.80
2	3206439		Front-vegetable		Appelez-nous	-
3	3206440		Trim-pan		Appelez-nous	-
4	3206442		Insert-cover Crisper		Appelez-nous	-
5	3206454		Top-refrigerator		Appelez-nous	-
6	3206443		Cover-crisper		Appelez-nous	-
7	3206437		Shelf-sliding (3)		Appelez-nous	-
8	3206436		Trim-shelf (3)		Appelez-nous	-
9	3206455		Bottom-freezer		Appelez-nous	-
10	3206456		Divider-styro		Appelez-nous	-
11	01121808		Ice Tray, Plastic		Appelez-nous	-
12	3206390		Box-control		Appelez-nous	-
13	3018894		Control-temperature		Appelez-nous	-
14	3018891		Housing, Cap Tube		Appelez-nous	-
15	G187484		Timer		Appelez-nous	-
16	3001179		Light Bulb		Appelez-nous	-
17	G168510		Light Socket		Appelez-nous	-
18	3206391		Knob-cold Control		Appelez-nous	-
19	3206389		Switch-energy Saver		Appelez-nous	-
21	3206447		Mullion-avoc		Appelez-nous	-
22	3206134		Screw (4)		Appelez-nous	-
23	5303206752		Strap-mullion		Appelez-nous	-
24	08003607		Washer-steel (2)		Appelez-nous	-
25	5303206753		Spacer-mullion (2)		Appelez-nous	-
26	3206445		Heater-mullion		Appelez-nous	-
27	09918806		Switch-light		Appelez-nous	-
*26891	G167565		Grommet-frzr Shelf Rh (2)		Appelez-nous	-
*26891	3201150		End Cap (2)				$ 4.57
*26891	3206435		Shelf-freezer		Appelez-nous	-
*26891	G176993		Grommet-frzr Shelf Lh (2)		Appelez-nous	-
15A	08000008		Screw-mtg (2) (non-illustrated)		Appelez-nous	-
2A	3206441		Front-fruits		Appelez-nous	-
5A	08000070		Screw		Appelez-nous	-
