New Model Search:

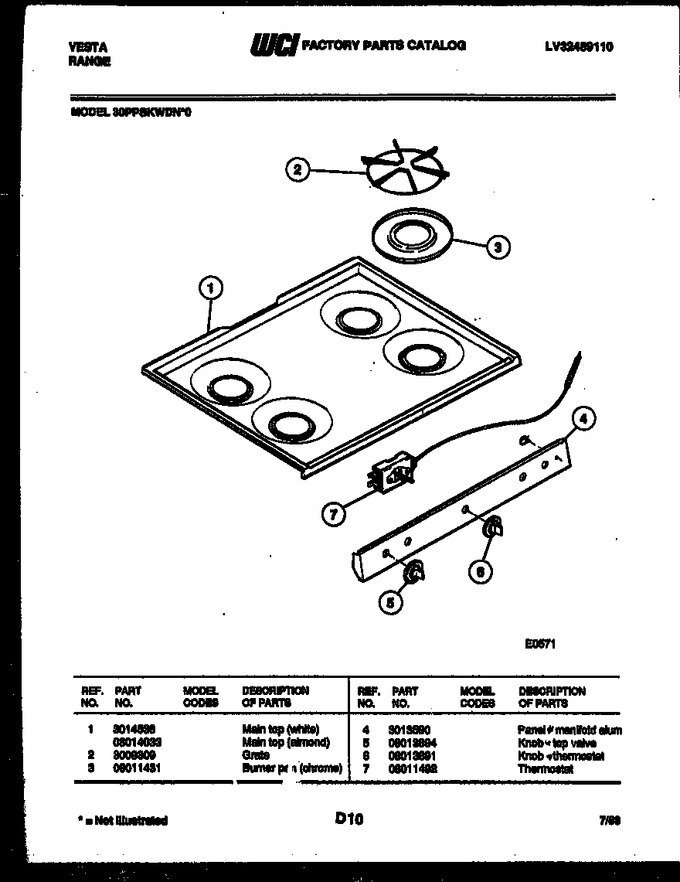

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08014033 | Main Top (almond) |
|
- | |||||
| 1 | 3014536 | Main Top (white) |
|
- | |||||
| 2 | 3009309 | Grate |
|
- | |||||
| 3 | 08011431 | Burner Pan (chrome) |
|
- | |||||
| 4 | 3013590 | Panel - Manifold (alum) |
|
- | |||||
| 5 | 08013894 | Knob - Top Valve |
|
- | |||||
| 6 | 08013891 | Knob Thermostat |
|
- | |||||
| 7 | 08011492 | Thermostat |
|
- |
