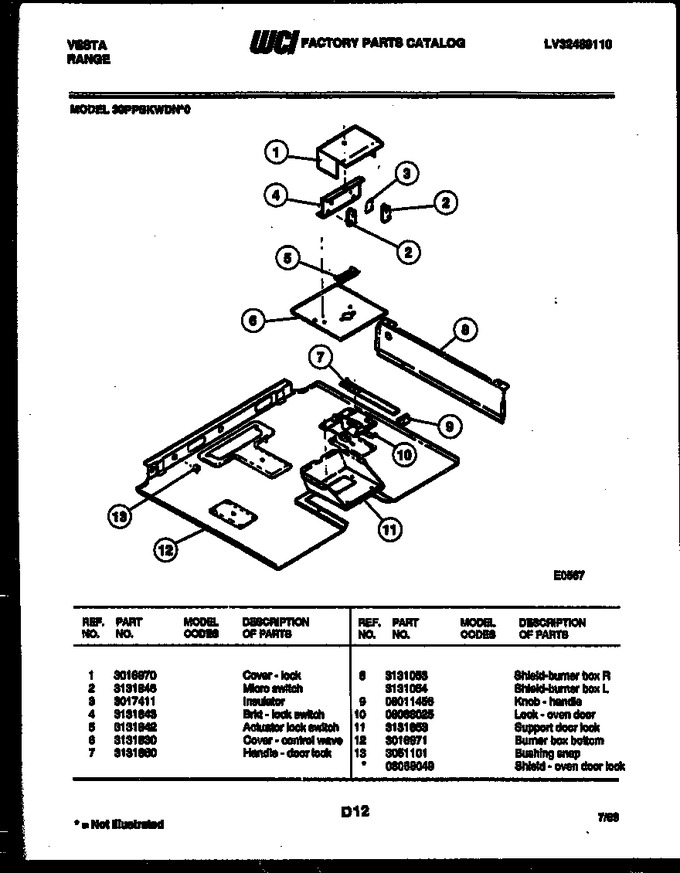

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Backguard
03 - Cooktop Parts
04 - Door Parts
05 - Burner Box Parts
06 - Burner Parts
07 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3016970 | Cover-lock |
|
- | |||||
| 2 | 3131846 | Micro Switch |
|
- | |||||
| 3 | 3017411 | Insulator |
|
- | |||||
| 4 | 3131843 | Brkt - Lock Switch |
|
- | |||||
| 5 | 3131842 | Actuator Lock Switch |
|
- | |||||
| 6 | 3131830 | Cover - Control Wave |
|
- | |||||
| 7 | 3131850 | Handle - Door Lock |
|
- | |||||
| 8 | 3131053 | Shield-burner Box R |
|
- | |||||
| 9 | 08011456 | Knob - Handle |
|
- | |||||
| 10 | 08068025 | Lock Oven Door |
|
- | |||||
| 11 | 3131853 | Support Door Lock |
|
- | |||||
| 12 | 3016971 | Burner Box-bottom |
|
- | |||||
| 13 | 3051101 | Bushing - Snap |
|
- | |||||
| *29631 | 08068049 | Shield - Oven Door Lock |
|
- | |||||
| 8A | 3131054 | Shield-burner Box L |
|
- |
