01 - Cover


02 - Door


03 - Cabinet W/fan Assembly


04 - Shelves, Controls, Divider, Mullion


05 - Cooling System

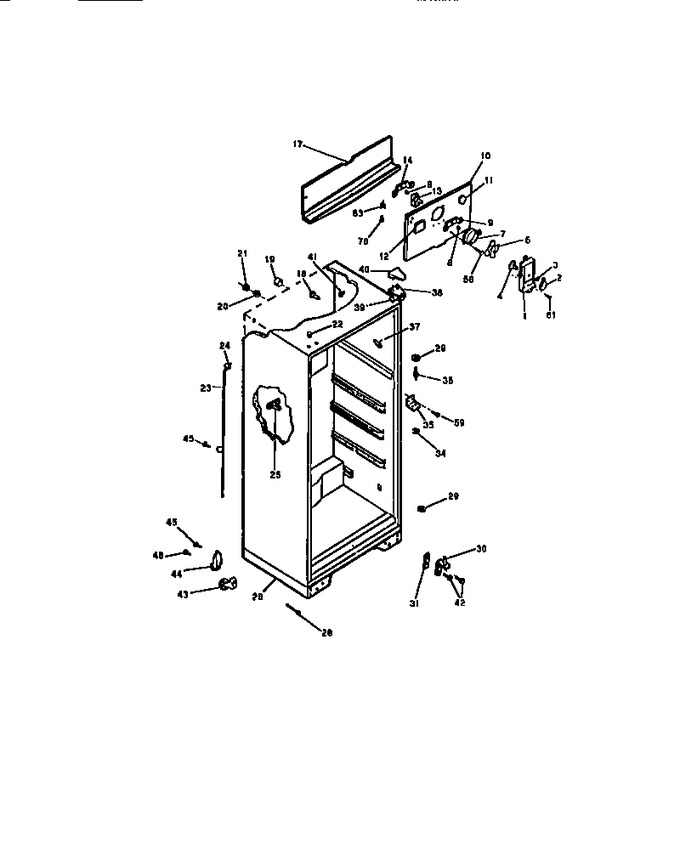

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08009822		Label-fan Cover (non-illustrated)		Appelez-nous	-
1	08009817		Cover, Fan		Appelez-nous	-
2	08009823		Label-damper Knob (non-illustrated)		Appelez-nous	-
2	5308009793		Knob, Damper Control		Appelez-nous	-
3	5303001028		Nut, Push		Appelez-nous	-
4	5303001331		Damper-fan Cover				$ 31.71
5	5308000010		Fan Blade			Immediately	$ 49.03
7	5308000124		Ring-fan Orifice				$ 53.58
8	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
9	5303205118		Bracket, Motor Mounting, Front		Appelez-nous	-
10	5308009771		Cover, Evaporator Coil		Appelez-nous	-
10	5303209814		Nut, ``u`` Type, No. 8(a), Coil Cover, (2) (non Illustrated)		Appelez-nous	-
11	5303208309		Plug-hole, Factory Test				$ 45.50
12	5308013636		Plug, Decorative, Ice Maker Hole		Appelez-nous	-
13	5300158289		Motor, Fan			Immediately	$ 149.94
14	5303205119		Bracket, Motor Mounting, Rear		Appelez-nous	-
17	5303001470		Trough-drain		Appelez-nous	-
18	5308000097		Support, Evaporator Cover (2)		Appelez-nous	-
19	5303001198		Tube-rubber		Appelez-nous	-
20	5303001286		Ferrule-inner		Appelez-nous	-
21	5303001287		Ferrule-outer		Appelez-nous	-
22	5303001388		Plug-button, White, Upper Hinge Holes				$ 2.60
23	5303210377		Tube, Drain With Seal Ring				$ 109.31
24	5303207353		Seal Ring, Drain Tube				$ 6.81
25	5308000058		Spout-drain Tube		Appelez-nous	-
25	5303001361		Pin, Push, Drain Spout (2) (non-illustrated)		Appelez-nous	-
26	5303212487		Base-cabinet		Appelez-nous	-
28	5303271412		Bolt-roller Adj, Indt Hex Head Sems, 1/4-28 X 2-3/4, (2)				$ 37.64
29	5308000007		Washer, .34 X .62 X .05, Nylon		Appelez-nous	-
30	5303212597		Tapping Plate/gusset, Right Hand (non-illustrated)		Appelez-nous	-
30	5303212489		Bracket, Lower Hinge, With Hinge Pin		Appelez-nous	-
30	5303212596		Tapping Plate/gusset, Left Hand (non-illustrated)		Appelez-nous	-
31	5303212488		Shim-lower Hinge				$ 5.25
34	5308000186		Washer, .34 X .62 X .10, Nylon			Immediately	$ 6.02
35	5303001369		Bracket- Center Hinge		Appelez-nous	-
36	5308000184		Pin-center Hinge				$ 8.87
37	5303202336		Trim, Cabinet Corner, White, (4)		Appelez-nous	-
38	5308012296		Tapping Plate, Upper Hinge, (2) (non-illustrated)				$ 47.44
38	241710601		Screw   (Replaces: 5303001479)				$ 13.46
38	5308012843		Bracket-upper Hinge				$ 71.47
39	5303001037		Shim - Upper Hinge				$ 12.39
40	5308012820		Cover-upper Hinge, White		Appelez-nous	-
41	5304509705		Grommet, Shelf Mounting   (Replaces: 5303001609)				$ 10.01
41	5304500407		Grommet-shelf Mounting, Left Hand (non-illustrated)   (Replaces: 5308009759)			Immediately	$ 6.38
42	5303001320		Screw-hinge/gusset, Hex Washer Head Mach, 1/4-20 X 5/8,		Appelez-nous	-
43	5303212490		Roller Assembly, Front (2)		Appelez-nous	-
44	5308009773		Roller Assembly, Rear (2)		Appelez-nous	-
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
46	5308009762		Bolt-roller Mounting, Hex Washer Head Mach, 1/4-28 X 1/2		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
59	5308012258		Screw				$ 2.25
78	5303210353		Screw, Connector Bracket, Hex Washer Head, 8-32(ca) X 1		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
83	5308000107		Bracket-connector				$ 33.23
*41161	5308016571		Plug-button, Liner				$ 4.79
