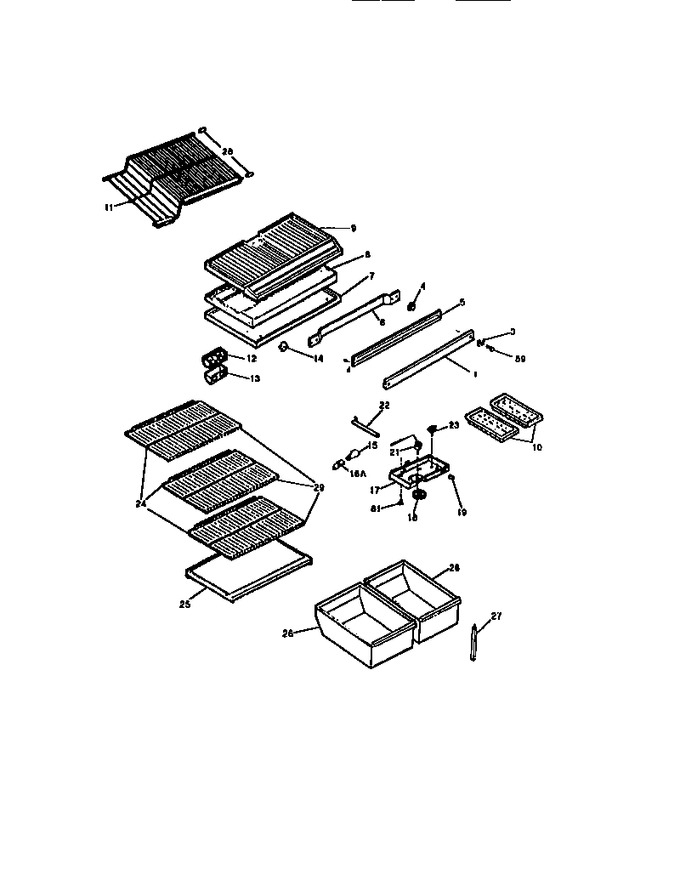

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303200366 | Mullion, White |
|
$ 70.04 | |||||
| 3 | 5303206754 | Washer No. 10 Flat, 7/32 X 7/16 Od, Steel |
|
- | |||||
| 4 | 5303200464 | Spacer, Mullion Mounting (2) |
|
- | |||||
| 5 | 5303210351 | Heater-mullion |
|
- | |||||
| 6 | 5308010008 | Strap, Mullion Mounting |
|
- | |||||
| 7 | 3018993 | Top Panel, Refrigerator |
|
- | |||||
| 7 | 5303001380 | Screw |
|
- | |||||
| 8 | 3018994 | Divider - Styrofoam |
|
- | |||||
| 8 | 3018900 | Harness-wiring, Control/divider (non-illustrated) |
|
- | |||||
| 8 | 3205266 | Protector-edge (non-illustrated) |
|
$ 80.09 | |||||
| 9 | 5303211427 | Bottom Panel, Freezer |
|
- | |||||
| 10 | 01121808 | Ice Tray, Plastic |
|
- | |||||
| 11 | 08009860 | Shelf, Freezer, Step |
|
- | |||||
| 12 | 5308014667 | Deflector, Air |
|
- | |||||
| 12 | 5303001449 | Seal-air Deflector (non-illustrated) |
|
$ 2.12 | |||||
| 13 | 5303001448 | Cover-air Deflector |
|
- | |||||
| 13 | 5303200590 | Extension, Air Deflector, With Insulation (non-illustrat |
|
- | |||||
| 14 | 5309918806 | Switch, Light |
|
Immediately | $ 21.97 | ||||
| 15 | 5303001179 | Light Bulb/lamp |
|
- | |||||
| 16 | 218906802 | Socket-light/lamp (Replaces: 5308000815) |
|
$ 17.72 | |||||
| 17 | 3018895 | Box, Control |
|
- | |||||
| 18 | 3018893 | Knob, Temperature Control |
|
- | |||||
| 19 | 5303018896 | Switch, Energy Saver |
|
- | |||||
| 21 | 5303018894 | Control-temperature |
|
- | |||||
| 21 | 5303001260 | Screw |
|
$ 6.73 | |||||
| 22 | 3068891 | Housing, Cont Cap Tube |
|
- | |||||
| 23 | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| 23 | 215846602 | Timer (Replaces: 5300187484) |
|
Immediately | $ 28.20 | ||||
| 24 | 3200471 | Shelf, Sliding, Refrigerator (3) |
|
- | |||||
| 25 | 3200470 | Cover, Crisper Pan |
|
- | |||||
| 26 | 3200468 | Pan, Crisper, Right Hand |
|
- | |||||
| 26 | 3200469 | Pan, Crisper, Left Hand |
|
- | |||||
| 27 | 5303206508 | Support, Crisper Cover, Adjustable |
|
- | |||||
| 28 | 3201150 | Cap-protector |
|
$ 4.57 | |||||
| 29 | 08013639 | Trim, Refrigerator Shelf, Snap-on, Front (3) |
|
- | |||||
| 59 | 5308012258 | Screw |
|
$ 2.25 | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 |
