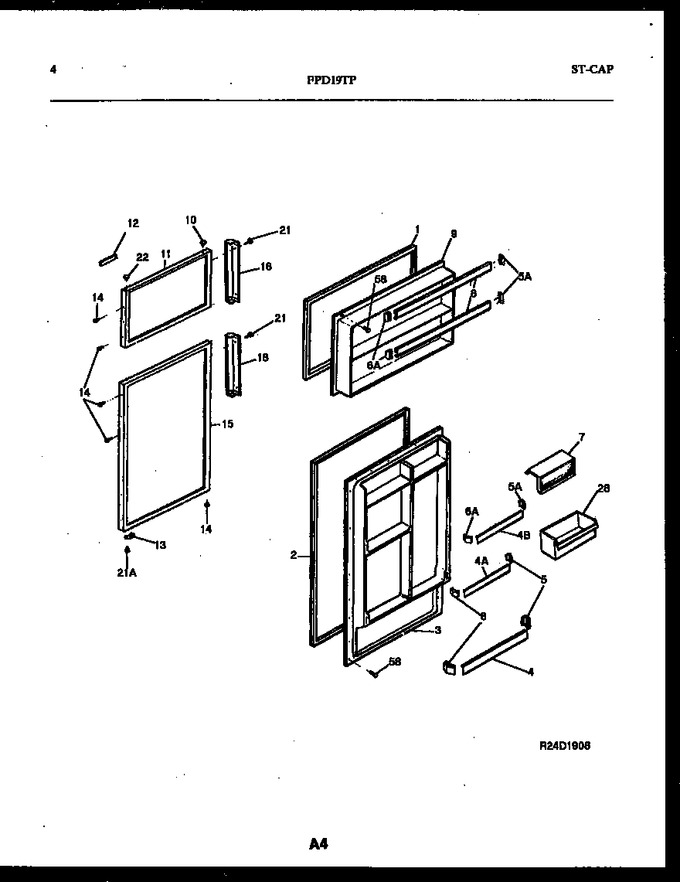

02 - Door Parts
03 - Cabinet Parts
04 - Cabinet Parts
05 - Shelves And Supports
06 - Shelves And Supports
07 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303017189 | Gasket-frzr Door, Magnetic |
|
- | |||||
| 2 | 5308017487 | Gasket, Refr Door, Magnetic |
|
- | |||||
| 3 | 3018976 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 3018975 | Rack, Door, Wide, Full Width |
|
- | |||||
| 5 | 5303205650 | Support-door Rack, Rh |
|
- | |||||
| 6 | 5303205648 | Support-door Rack, Lh |
|
- | |||||
| 7 | 3200467 | Door, Dairy |
|
- | |||||
| 8 | 3018972 | Rack, Door, Narrow, Full Width |
|
- | |||||
| 9 | 3018971 | Panel-inner Door, Frzr |
|
- | |||||
| 11 | 5303916054 | Panel-frzr Door, Wheat |
|
- | |||||
| 12 | 3201526 | Nameplate Assy |
|
- | |||||
| 13 | 5303212491 | Door Stop, Refr |
|
- | |||||
| 14 | 5308000180 | Plug-button, Wheat, Handle/dr Stop |
|
- | |||||
| 15 | 3916059 | Panel-refr Door, Wheat |
|
- | |||||
| 18 | 5303272665 | Handle, Door, Wheat |
|
- | |||||
| 21 | 5303272567 | Screw-handle Mtg, Spcl Cr Oval Hd, 10-24(d) X 5/8, Whea |
|
- | |||||
| 22 | 5308012007 | Bearing-hinge |
|
- | |||||
| 28 | 3200466 | Bin, Utility |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *58087 | 5303007739 | Insulation, Door, Fiberglass, (bulk) |
|
- | |||||
| 13A | 5308000255 | Door Stop, Frzr (non Illustrated) |
|
$ 42.20 | |||||
| 21A | 5308011745 | Screw |
|
$ 10.38 | |||||
| 4A | 3019018 | Rack, Door, Wide, Short |
|
- | |||||
| 4B | 3018423 | Rack, Door, Narrow, Short |
|
- | |||||
| 5A | 5303323480 | Support, Door Rack, Rh (Replaces: 5303017378) |
|
$ 14.18 | |||||
| 6A | 5303323481 | Support, Door Rack, Lh (Replaces: 5303017381) |
|
Immediately | $ 14.18 |
