SELECT A DIAGRAM
02 - Door Parts
03 - Cabinet Parts
04 - Cabinet Parts
05 - Shelves And Supports
06 - Shelves And Supports
07 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:

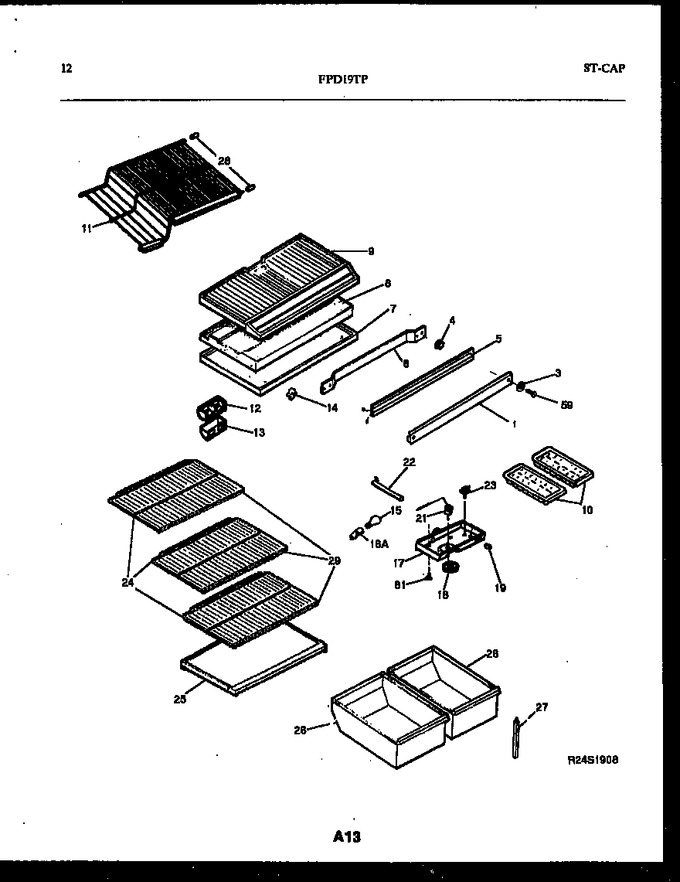

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 24 | 5303283041 | Shelf-sliding, Refr, (3) |
|
- | |||||
| 25 | 3200470 | Cover, Crisper Pan |
|
- | |||||
| 26 | 3200469 | Pan-crisper Lh |
|
- | |||||
| 26 | 3200468 | Pan-crisper Rh |
|
- | |||||
| 27 | 5303206508 | Support-crisper Cvr, Adjustable |
|
- | |||||
| 28 | 3201150 | Cap-protector |
|
$ 4.57 | |||||
| 29 | 5303285000 | Trim-refr Shelf, Snap-on, Front, (3) |
|
- | |||||
| 59 | 5308012258 | Screw |
|
$ 2.25 | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 |
