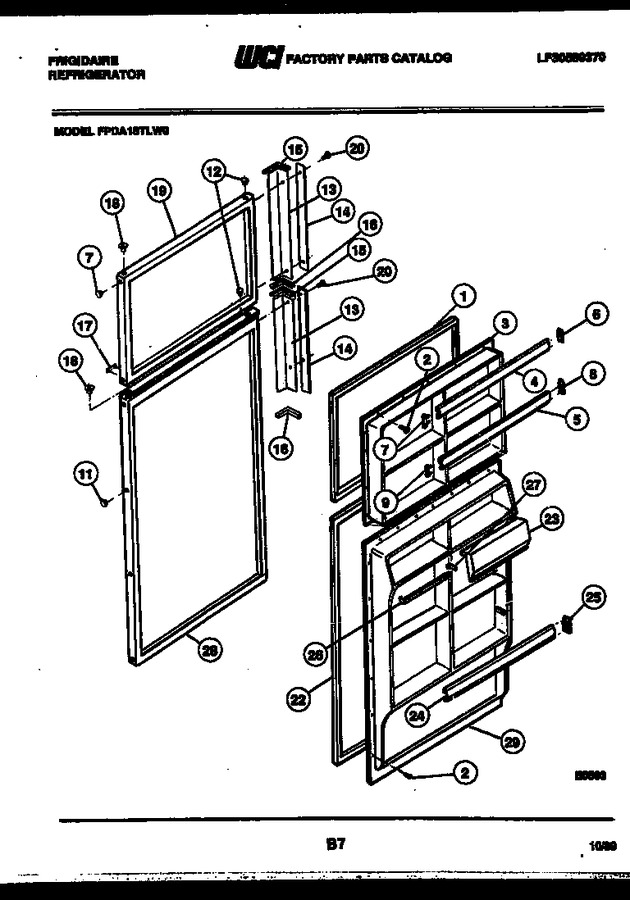

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3206462		Gasket-freezer		Appelez-nous	-
2	08002748		Screw		Appelez-nous	-
3	3206463		Panel-inner-freezer		Appelez-nous	-
4	5303206767		Rack-top (2)		Appelez-nous	-
5	5303206768		Rack-btm Wide		Appelez-nous	-
6	3017377		Support-rh		Appelez-nous	-
7	5303323481		Support-lh   (Replaces: 3017380)			Immediately	$ 14.18
8	3205649		Support-rh		Appelez-nous	-
9	3204840		Support-lh		Appelez-nous	-
11	08000090		Button-plug, White		Appelez-nous	-
12	08000134		Button-plug, White		Appelez-nous	-
13	3017190		Handle-complete (2)		Appelez-nous	-
14	08010229		Trim (2)		Appelez-nous	-
15	08010239		Cap-top (2)		Appelez-nous	-
16	08010238		Cap-bottom (2)		Appelez-nous	-
17	3201526		Nameplate		Appelez-nous	-
18	3206153		Bearing (8)		Appelez-nous	-
19	3916606		Panel-freezer-white		Appelez-nous	-
20	08013645		Screw (4)		Appelez-nous	-
22	3206466		Gasket-refr		Appelez-nous	-
23	3018974		Door-dairy		Appelez-nous	-
24	5303206772		Rack-refr Door (2)		Appelez-nous	-
25	5303325990		Support-rh (4)   (Replaces: 5303206644)			Immediately	$ 17.01
26	5303206771		Rack-refr Door		Appelez-nous	-
27	3017377		Support-rh		Appelez-nous	-
28	3916611		Panel-refr-white		Appelez-nous	-
29	5303206770		Panel-inner-refr		Appelez-nous	-
*26946	3007739		Insulation-door (bulk)		Appelez-nous	-
25A	5303325991		Support-lh (4) (non-illustrated)   (Replaces: 5303206645)				$ 17.01
27A	5303323481		Support-lh (non-illustrated)   (Replaces: 3017380)			Immediately	$ 14.18

    View Diagram in Separate Window       Print Part List
