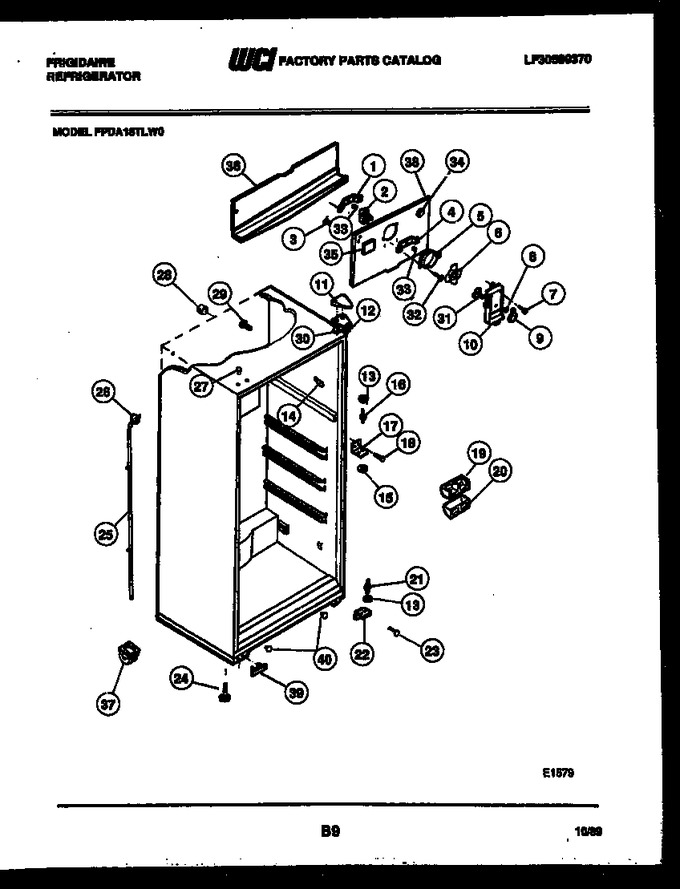

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08000042 | Bracket-motor Refr |
|
- | |||||
| 2 | 08004176 | Motor-fan |
|
- | |||||
| 3 | 08000107 | Connector Bracket |
|
- | |||||
| 4 | 08000043 | Bracket-front |
|
- | |||||
| 5 | 08000124 | Orifice Ring |
|
- | |||||
| 6 | 5308000010 | Fan Blade (Replaces: 08000010) |
|
Immediately | $ 49.03 | ||||
| 7 | 08016566 | Screw |
|
- | |||||
| 8 | 08000067 | Push Nut-damper |
|
- | |||||
| 9 | 3206389 | Knob-damper Control |
|
- | |||||
| 10 | 3206387 | Cover-fan |
|
- | |||||
| 11 | 3206101 | Hinge Cover-white |
|
$ 49.25 | |||||
| 12 | 3206100 | Hinge, Top |
|
- | |||||
| 13 | 08000007 | Washer-hinge (3) |
|
- | |||||
| 14 | 3202336 | Corner Trim-white |
|
- | |||||
| 15 | 3001038 | Washer-hinge |
|
- | |||||
| 16 | 08000184 | Pin-center Hinge |
|
- | |||||
| 17 | 08000757 | Bracket-center Hinge |
|
- | |||||
| 18 | 08012258 | Screw |
|
- | |||||
| 19 | 3204206 | Air Deflector |
|
- | |||||
| 20 | 3001546 | Cover-deflector |
|
- | |||||
| 21 | 08003578 | Pin-bottom Bracket |
|
- | |||||
| 22 | 3206136 | Bracket-bottom Hinge |
|
- | |||||
| 23 | 3206143 | Screw-mtg (4) |
|
- | |||||
| 24 | 3206141 | Screw-leveling, (2) |
|
$ 11.50 | |||||
| 25 | 3206115 | Tube-drain |
|
- | |||||
| 26 | 08009755 | Ring-seal |
|
- | |||||
| 27 | 08007099 | Plug-hinge-white |
|
- | |||||
| 28 | 08000004 | Tube-rubber (2) |
|
- | |||||
| 29 | 08000097 | Support-coil Cvr (2) |
|
- | |||||
| 30 | 08012829 | Shim-top Bracket |
|
- | |||||
| 31 | 3206110 | Damper-fan Cover |
|
$ 53.08 | |||||
| 32 | 08002748 | Screw |
|
- | |||||
| 33 | 08000032 | Bushing-motor (2) |
|
- | |||||
| 34 | 3206451 | Cover-coil |
|
- | |||||
| 35 | 08013636 | Plug-decorative |
|
- | |||||
| 36 | 3206444 | Trough-drain |
|
- | |||||
| 37 | 3206237 | Roller (4) |
|
- | |||||
| 38 | 3203044 | Plug-short Test Hole |
|
- | |||||
| 39 | 3206135 | Cover-lower Hinge |
|
- | |||||
| 40 | 3206142 | Button Plug (2) |
|
- | |||||
| 12A | 08000123 | Screw |
|
- | |||||
| 18A | 08003607 | Washer-steel (4) (non-illustrated) |
|
- | |||||
| 25A | 08000056 | Drain Spout (non-illustrated) |
|
- | |||||
| 34A | 08000126 | Nut-coil Cover (2) (non-illustrated) |
|
- | |||||
| 3A | 08002748 | Screw |
|
- | |||||
| 5A | 3001001 | Screw-fan Assy (2) (non-illustrated) |
|
- |
