SELECT A DIAGRAM

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts

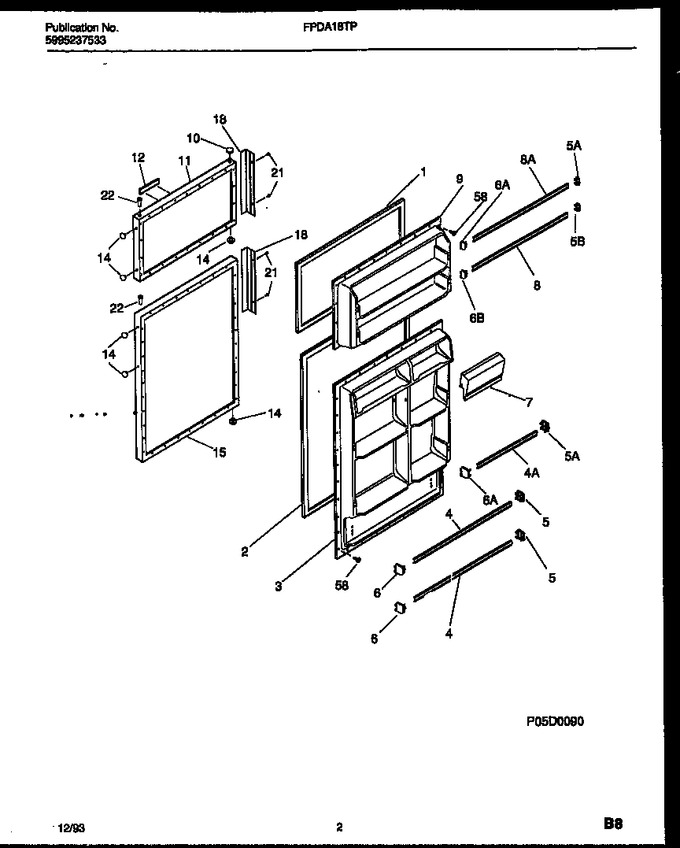

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215568016		Gasket-frzr Door, Magnetic, Brown		Appelez-nous	-
2	3206466		Gasket-refr Door, Magnetic, Brown		Appelez-nous	-
3	5303206770		Panel-inner Door, Refr		Appelez-nous	-
4	215516220		Rack-door, Full-width, Wide, (2)   (Replaces: 5303206643)				$ 54.58
5	5303325990		Support-door Rack, Rh   (Replaces: 5303203262)			Immediately	$ 17.01
6	5303203263		Support-door Rack, Lh		Appelez-nous	-
7	5303275021		Door-dairy		Appelez-nous	-
8	215516220		Rack-door, Full-width, Wide   (Replaces: 5303206643)				$ 54.58
9	3206463		Panel-inner Door, Frzr		Appelez-nous	-
10	5308000134		Plug-button, White, Hinge Brg Hole				$ 5.62
11	5303916900		Panel-frzr Door, White, W/ Insulation		Appelez-nous	-
12	3201526		Nameplate Assy		Appelez-nous	-
14	240494001		Plug-button, White, Handle/dr Stop   (Replaces: 5308000090)			Immediately	$ 18.20
15	5303916902		Panel-refr Door, White		Appelez-nous	-
18	5303272664		Handle-door, 16.75`` Long, White		Appelez-nous	-
21	5303272566		Screw-handle Mtg, Spcl Cr Oval Hd, 10-24(d) X 5/8, Whit		Appelez-nous	-
22	5308012007		Bearing, Hinge (8)		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
*89734	5303007739		Insulation, Door, Fiberglass, (bulk)		Appelez-nous	-
4A	5303206632		Rack-door, Short, Narrow		Appelez-nous	-
5A	5303323480		Support, Door Rack, Rh   (Replaces: 5303017378)				$ 14.18
5B	5303205650		Support-door Rack, Rh		Appelez-nous	-
6A	5303323481		Support, Door Rack, Lh   (Replaces: 5303017381)			Immediately	$ 14.18
6B	5303205648		Support-door Rack, Lh		Appelez-nous	-
8A	5303206632		Rack-door, Full-width, Narrow		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
