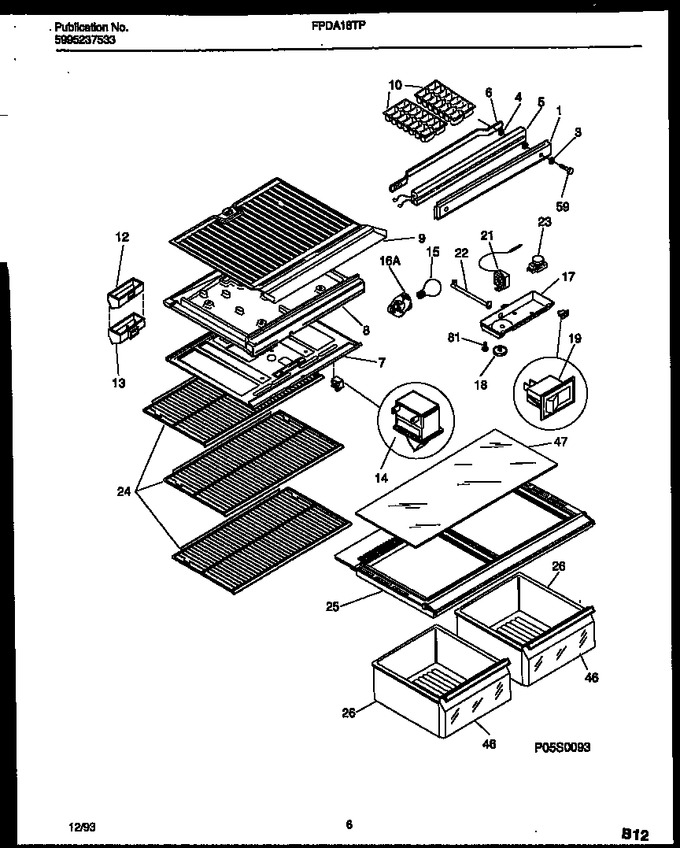

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3206446 | Mullion, White |
|
- | |||||
| 3 | 5303206754 | Washer, No. 10 Steel, 7/32 X 7/16 Od |
|
- | |||||
| 4 | 5303200464 | Spacer, Mullion Mtg, (2) |
|
- | |||||
| 5 | 3206445 | Heater-mullion |
|
- | |||||
| 6 | 215170802 | Strap-mullion, Mtg |
|
- | |||||
| 7 | 3206454 | Top Panel-refr |
|
- | |||||
| 8 | 3206456 | Divider, Styrofoam |
|
- | |||||
| 9 | 3206455 | Bottom Panel-frzr |
|
- | |||||
| 10 | 5303001324 | Tray-ice, Plastic, (2) |
|
- | |||||
| 12 | 5308014667 | Deflector-air, W/seal |
|
- | |||||
| 13 | 5303001448 | Cover-air Deflector |
|
- | |||||
| 14 | 5309918806 | Switch-light/lamp |
|
Immediately | $ 21.97 | ||||
| 15 | 40A15 | Light Bulb/lamp, 40w (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 17 | 3206390 | Box-control |
|
- | |||||
| 18 | 3206391 | Knob-temp Control |
|
- | |||||
| 19 | 5303206872 | Switch-energy Saver |
|
- | |||||
| 21 | 5303018894 | Control-temperature |
|
- | |||||
| 22 | 3018891 | Housing, Cont Cap Tube |
|
- | |||||
| 23 | 215846602 | Timer (Replaces: 215267800) |
|
Immediately | $ 28.20 | ||||
| 24 | 5303283109 | Shelf, Sliding, Wire, Refr Section |
|
- | |||||
| 25 | 5303207340 | Cover-crisper Pan, With Beam, Less Insert |
|
$ 265.80 | |||||
| 26 | 3206438 | Pan-crisper |
|
Immediately | $ 227.80 | ||||
| 46 | 5303273064 | Front-crisper Pan, Rh |
|
- | |||||
| 47 | 5303281398 | Insert-pan Cover, Glass |
|
$ 114.29 | |||||
| 59 | 3206134 | Screw-hinge/mullion, Acorn Hx Wsh Hd, 10-24(23) X 1 |
|
- | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 12A | 5303001449 | Seal-air Deflector (non-illustrated) |
|
$ 2.12 | |||||
| 13A | 5303200590 | Extension, Air Deflector, With Insulation (non-illustrated) |
|
- | |||||
| 16A | 218906802 | Socket-light/lamp (Replaces: 5308000815) |
|
$ 17.72 | |||||
| 21A | 5303001260 | Screw |
|
$ 6.73 | |||||
| 23A | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| 46A | 5303273065 | Front-crisper Pan, Lh |
|
- | |||||
| 7A | 5303001380 | Screw |
|
- | |||||
| 8A | 3205266 | Protector-edge (non-illustrated) |
|
$ 80.09 | |||||
| 8B | 3019040 | Harness-wiring, Control/divider (non-illustrated) |
|
- |
