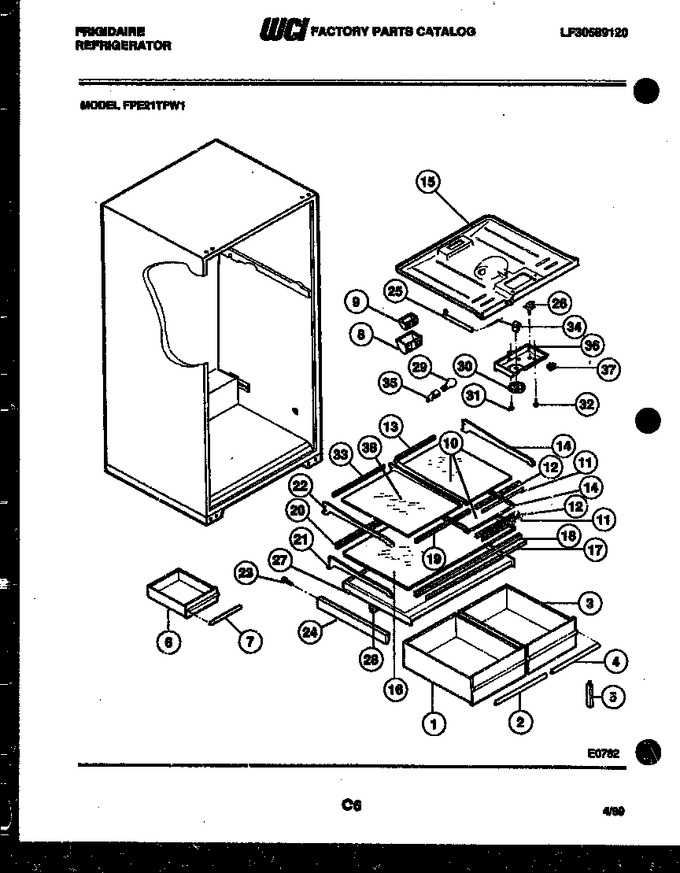

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3018873 | Pan-storage Lh |
|
- | |||||
| 2 | 3017423 | Trim, Pan, Lh |
|
- | |||||
| 3 | 3018982 | Pan-storage Rh |
|
- | |||||
| 4 | 3017422 | Trim, Pan, Rh |
|
- | |||||
| 5 | 3016528 | Support-cover |
|
- | |||||
| 6 | 3018987 | Pan, Meat |
|
- | |||||
| 7 | 3018986 | Trim, Meat Pan |
|
- | |||||
| 8 | 08000055 | Cover-air Deflector |
|
- | |||||
| 9 | 3204206 | Air Deflector |
|
- | |||||
| 10 | 3200609 | Glass-shelf (2) |
|
- | |||||
| 11 | 3019036 | Trim, Shelf (2) |
|
- | |||||
| 12 | 3200610 | Retainer (2) |
|
- | |||||
| 13 | 3200611 | Retainer-rear (2) |
|
- | |||||
| 14 | 3200613 | Frame-1/2 Shelf (2) |
|
- | |||||
| 15 | 3019038 | Top, Refrigerator |
|
- | |||||
| 16 | 3200614 | Glass-shelf |
|
- | |||||
| 17 | 3018732 | Trim |
|
- | |||||
| 18 | 3018724 | Retainer |
|
- | |||||
| 19 | 3200316 | Retainer-meat Shelf |
|
- | |||||
| 20 | 3018749 | Retainer-rear |
|
- | |||||
| 21 | 3200616 | Frame-full Shelf |
|
- | |||||
| 22 | 3200617 | Frame-meat Shelf |
|
- | |||||
| 23 | 08014528 | Screw (6) |
|
$ 4.31 | |||||
| 24 | 3018889 | Hanger Lh |
|
- | |||||
| 25 | 3018891 | Housing, Cap Tube |
|
- | |||||
| 26 | 3001671 | Timer |
|
- | |||||
| 27 | 3200329 | Gasket-cover |
|
- | |||||
| 28 | 3019035 | Cover-crisper |
|
- | |||||
| 29 | 08002735 | Bulb-light |
|
- | |||||
| 30 | 3018893 | Knob, Cold Control |
|
- | |||||
| 31 | 08000008 | Screw (2) |
|
- | |||||
| 32 | 08000009 | Screw |
|
- | |||||
| 33 | 3200331 | Retainer-rear |
|
- | |||||
| 34 | 3018894 | Control-cold |
|
- | |||||
| 35 | 08000815 | Socket-light |
|
- | |||||
| 36 | 3018895 | Box, Control |
|
- | |||||
| 37 | 3018896 | Switch-rocker |
|
- | |||||
| 38 | 3200330 | Glass-meat Shelf |
|
- | |||||
| 14A | 3200901 | Rail-glass Supt (4) (non-illustrated) |
|
- | |||||
| 19A | 3200322 | Trim-meat Shelf (non-illustrated) |
|
- | |||||
| 21A | 3200901 | Rail-glass Supt (4) (non-illustrated) |
|
- | |||||
| 24A | 3018890 | Hanger Rh (non-illustrated) |
|
- | |||||
| 28A | 3018984 | Trim, Crisper Cover (non Illustrated) |
|
- | |||||
| 28B | 3200389 | Glass-crisper Cover (non-illustrated) |
|
- |
