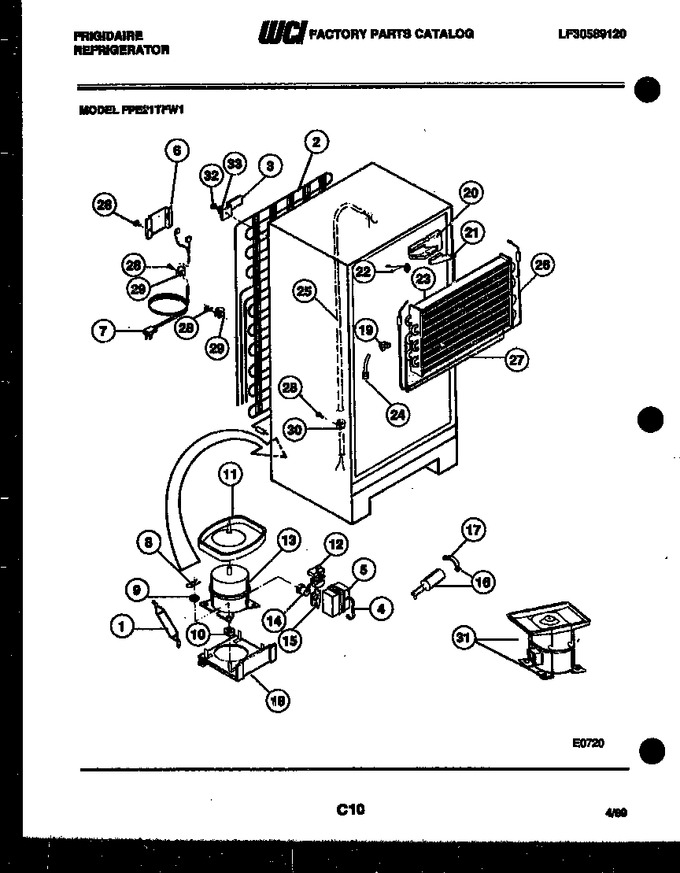

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3007351 | Drier |
|
- | |||||
| 2 | 08000094 | Condenser |
|
- | |||||
| 3 | 08003600 | Bracket-mounting (4) |
|
- | |||||
| 4 | 08016584 | Strap-terminal Cover |
|
- | |||||
| 5 | 08016583 | Cover-terminal |
|
- | |||||
| 6 | 08013644 | Cover-wiring |
|
- | |||||
| 7 | 08000064 | Service Cord |
|
- | |||||
| 8 | 08003596 | Clip (4) |
|
- | |||||
| 9 | 08003597 | Washer (4) |
|
- | |||||
| 10 | 08008778 | Grommet (4) |
|
- | |||||
| 11 | 3001349 | Defrost Pan |
|
- | |||||
| 12 | 08017226 | Relay |
|
- | |||||
| 13 | 08950230 | Compressor With Electricals-svce |
|
- | |||||
| 14 | 3202863 | Overload |
|
- | |||||
| 15 | 3202891 | Clip-overload |
|
- | |||||
| 16 | 3916391 | Capacitor Kit |
|
- | |||||
| 17 | 08017231 | Strap-capacitor Mtg |
|
- | |||||
| 18 | 08013663 | Plate-compressor Mounting |
|
- | |||||
| 19 | 08017227 | Insulation Block Ls |
|
- | |||||
| 20 | 08013648 | Insulation Block Rs |
|
- | |||||
| 21 | 08013646 | Insulation Plug Rs |
|
- | |||||
| 22 | 08000073 | Thermostat |
|
- | |||||
| 23 | 08000062 | Evaporator |
|
- | |||||
| 24 | 08000110 | Strap-evap/heater (2) |
|
- | |||||
| 25 | 08000728 | Heat Exchanger |
|
- | |||||
| 26 | 08000061 | Heater-defrost |
|
- | |||||
| 27 | 08009569 | Insulator |
|
- | |||||
| 28 | 08016629 | Screw-clamp Mtg (10) |
|
- | |||||
| 29 | 08002756 | Clamp-cable (3) |
|
- | |||||
| 30 | 08000133 | Clamp |
|
- | |||||
| 31 | 3916001 | Pan Retainer Kit |
|
- | |||||
| 32 | 08000039 | Screw |
|
- | |||||
| 33 | 08009617 | Washer |
|
- | |||||
| 11A | G184715 | Drain Pan Svc Compr (non-illustrated) |
|
- | |||||
| 11B | 08003611 | Lock Nut (non-illustrated) |
|
- | |||||
| 27A | 3019040 | Wiring Harness-divider (non-illustrated) |
|
- | |||||
| 27B | 08000187 | Clamp-cable (non-illustrated) |
|
- | |||||
| 31A | 08017610 | Sound Tape (non-illustrated) |
|
- | |||||
| 31B | 9960001 | Hot Tube Repair Kit (non-illustrated) |
|
- | |||||
| 6A | 08009628 | Wiring Harness-compressor (non-illustrated) |
|
- |
