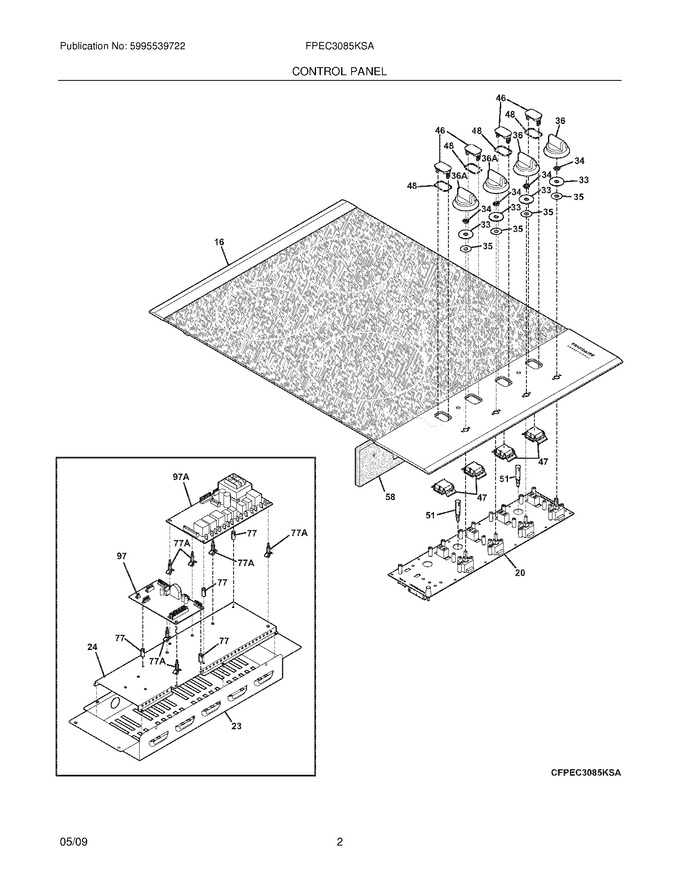

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Control Panel
05 - Maintop
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 16 | 318079229 | Main Top Assembly,glass ,black/stainless,w/trim & Frame |
|
$ 688.12 | |||||
| 23 | 318194725 | Panel,service |
|
- | |||||
| 24 | 318319205 | Deflector,service Panel |
|
- | |||||
| 33 | 318146012 | Bushing,control ,(4) |
|
$ 15.60 | |||||
| 34 | 316247700 | Nut,mounting |
|
$ 18.20 | |||||
| 35 | 318086007 | Washer,flat ,(4) ,control |
|
$ 9.93 | |||||
| 36 | 316564609 | Knob,control ,stainless ,single |
|
$ 132.51 | |||||
| 46 | 318319020 | Lens,indicator Light ,(6) |
|
$ 31.90 | |||||
| 47 | 318367101 | Clamp,lens ,(6) |
|
$ 25.46 | |||||
| 48 | 318337101 | Gasket,o`ring ,(6) |
|
$ 4.83 | |||||
| 58 | 318346008 | Insulation |
|
- | |||||
| 77 | 318293702 | Spacer,control ,(4) |
|
$ 16.22 | |||||
| 36A | 316564612 | Knob,control ,stainless ,dual |
|
$ 61.06 | |||||
| 77A | 316114100 | Spacer |
|
$ 60.96 | |||||
| F20 | 316543602 | Board,user Interface ,rotary ,w/potentiometer |
|
$ 464.78 | |||||
| F51 | 318337201 | Light,indicator ,red ,(2) |
|
$ 55.39 | |||||
| F97 | 316442065 | Board,user Interface ,(uib) |
|
$ 247.22 | |||||
| F97A | 316442119 | Board,power ,7 Relay |
|
Immediately | $ 366.78 | ||||
| FNI | 318402332 | Harness,wiring ,pilot Light |
|
$ 40.90 | |||||
| FNI | 318402334 | Harness,wiring ,interface ,to Relay Board |
|
$ 97.27 | |||||
| FNI | 318402330 | Harness,wiring ,interface ,to Display |
|
$ 455.77 | |||||
| NI | 5303308449 | Fastener,wire Tie |
|
- | |||||
| NI | 5303307980 | Screw,8-32 X 0.437 ,(8) |
|
Immediately | $ 14.18 | ||||
| NI | 5303323140 | Screw,ground ,10-32 X 0.375 |
|
- | |||||
| NI | 5304415832 | Screw,8-18 X 0.406 |
|
- | |||||
| NI | 5303311306 | Screw,8-18 X 0.375 ,(6) |
|
- |
