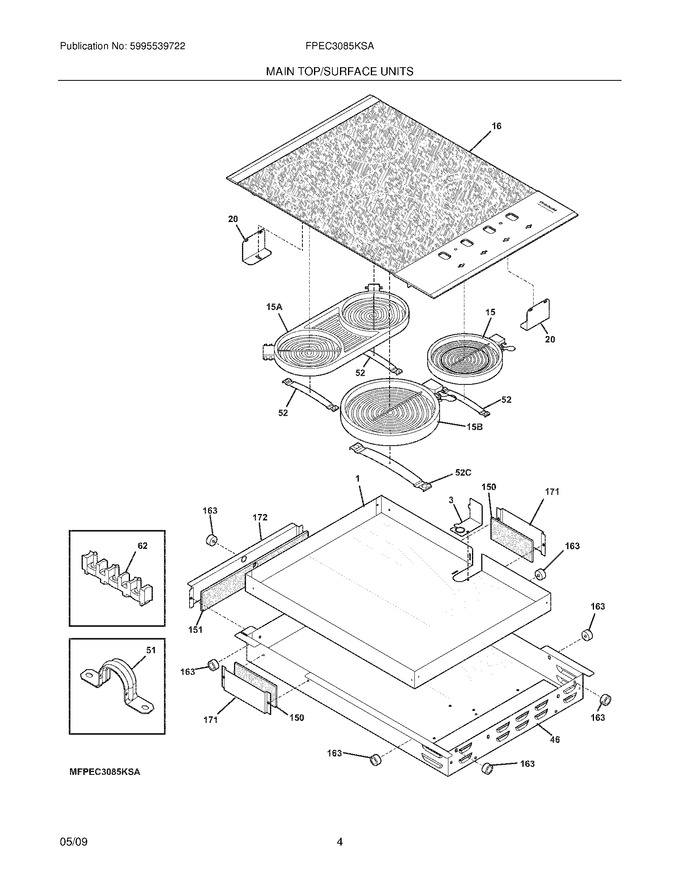

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318354143		Shield,heat		Appelez-nous	-
3	318371401		Cover,deflector ,(2)		Appelez-nous	-
16	318079229		Main Top Assembly,glass ,black/stainless,w/trim & Frame				$ 688.12
20	318121902		Bracket,retainer				$ 47.03
46	318354034		Box,burner		Appelez-nous	-
51	318389600		Bracket,conduit Mtg.				$ 12.76
52	318122008		Spring,element Mtg ,1800w/3000w				$ 90.80
150	318106051		Insulation,2 X 5.75 ,(2)		Appelez-nous	-
151	318106066		Insulation,15 X 2.37 ,w/aluminum Foil		Appelez-nous	-
163	318531702		Spacer,(6)				$ 9.93
171	318124912		Screen,thermal		Appelez-nous	-
172	318124915		Screen,thermal		Appelez-nous	-
52C	318122010		Spring,element Mtg ,3000w				$ 62.51
F15	318198952		Element,surface ,750/1800w ,dual Radiant   (Replaces: 318198936)			Immediately	$ 250.90
F15A	318258203		Element,bridge ,1800/2600			Immediately	$ 371.39
F15B	8583165300010		Element,surface ,9`` ,turbo ,3200w ,radiant   (Replaces: 316530000)			Immediately	$ 76.06
F163	131202300		Screw, 8 X 5/8   (Replaces: 3131048)			Immediately	$ 13.46
F62	5304409888		Terminal Block   (Replaces: 316056000)			Immediately	$ 26.69
FNI	318402411		Harness,wiring ,main				$ 226.04
FNI	318394474		Box & Wires Assy		Appelez-nous	-
NI	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-
NI	5303307980		Screw,8-32 X 0.437 ,(8)			Immediately	$ 14.18
NI	5303323139		Screw,10-24 X 0.906				$ 13.46
NI	316205500		Nut-10-32   (Replaces: 5303323144)				$ 11.34
NI	5303308449		Fastener,wire Tie		Appelez-nous	-
NI	318163601		Cleaner-cooktop				$ 0.42
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
