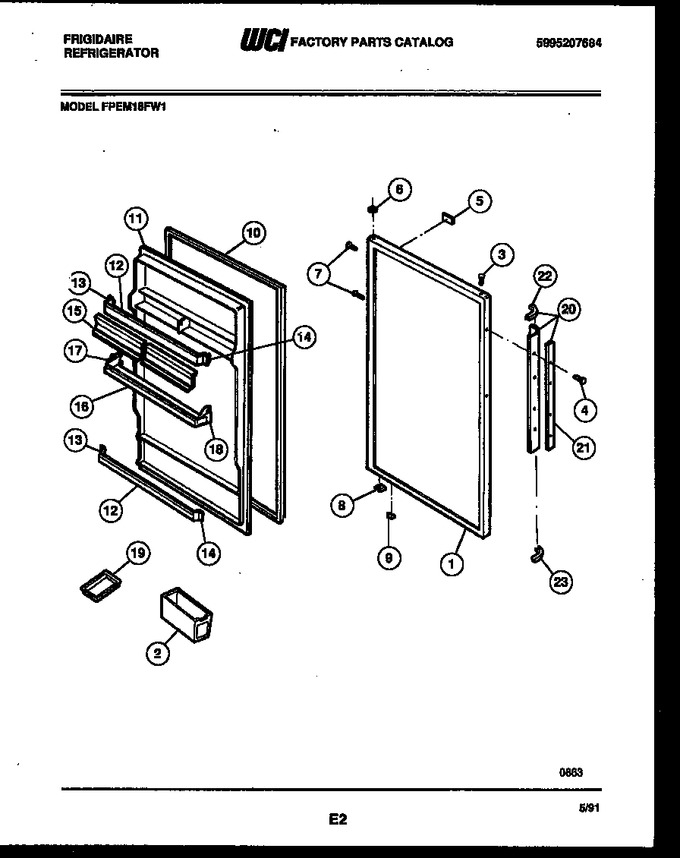

02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08009991 | Outer Panel-almond |
|
- | |||||
| 2 | 3018733 | Egg Container |
|
- | |||||
| 3 | 5303001308 | Plug, Hinge, Almond |
|
- | |||||
| 4 | 5308013645 | Screw (4) |
|
- | |||||
| 5 | 3201581 | Nameplate Assembly |
|
- | |||||
| 6 | 5308012007 | Bearing-hinge (4) |
|
- | |||||
| 7 | 5308000181 | Plug, Handle, Almond |
|
- | |||||
| 8 | 5308000255 | Door Stop |
|
$ 42.20 | |||||
| 9 | 5308000790 | Bumper, Light Switch |
|
$ 3.86 | |||||
| 10 | 3018734 | Gasket |
|
- | |||||
| 11 | 5303018735 | Inner Panel |
|
- | |||||
| 12 | 3018736 | Rack-top And Bottom (3) |
|
- | |||||
| 13 | 5303204690 | Support Lh (3) |
|
- | |||||
| 14 | 5303204689 | Support Rh (3) |
|
- | |||||
| 15 | 3018739 | Dairy Door Lh |
|
- | |||||
| 16 | 5303206687 | Shelf Rack-center (2) |
|
- | |||||
| 17 | 5303206685 | Cap-rack Lh |
|
- | |||||
| 18 | 5303206684 | Cap-rack Rh |
|
- | |||||
| 19 | 5303018743 | Butter Dish |
|
- | |||||
| 20 | 3018744 | Handle Assembly |
|
- | |||||
| 21 | 5308010229 | Trim-handle |
|
- | |||||
| 22 | 5308010238 | End Cap-top |
|
- | |||||
| 23 | 5308010239 | End Cap-bottom |
|
- | |||||
| 11A | 5308002748 | Screw |
|
- | |||||
| 11B | 5303209636 | Screw-mounting (26) (non-illustrated) |
|
- | |||||
| 15A | 3018740 | Dairy Door Rh (non-illustrated) |
|
- | |||||
| 8A | 5308011745 | Screw |
|
$ 10.38 | |||||
| 9A | 5308002748 | Screw |
|
- |
