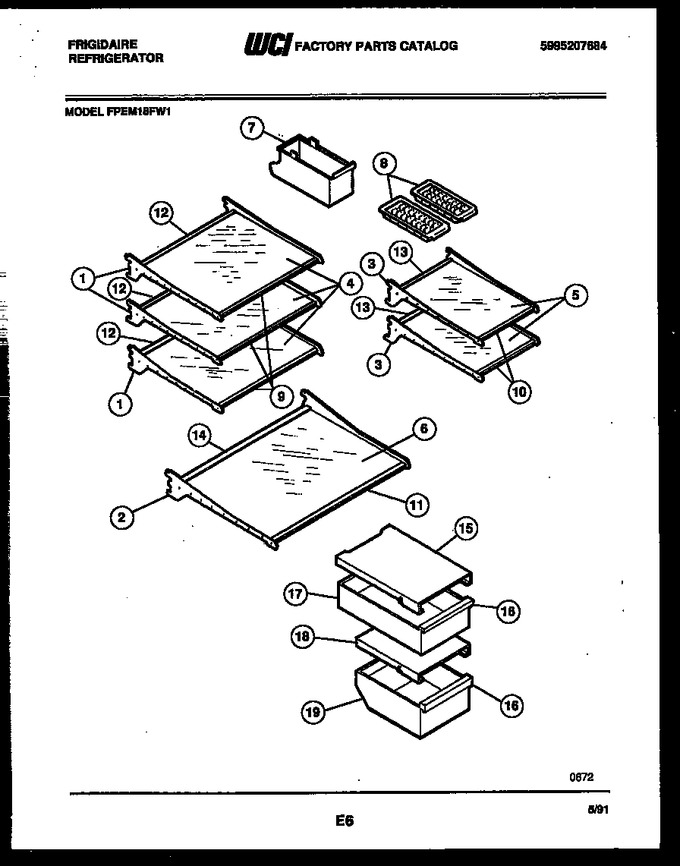

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303210056 | Frame-cant Shelf (3) |
|
- | |||||
| 2 | 5303210052 | Frame-full Shelf |
|
- | |||||
| 3 | 5303210061 | Frame-cant Shelf (2) |
|
- | |||||
| 4 | 5303210058 | Glass-shelf (3) |
|
- | |||||
| 5 | 5303210062 | Glass-shelf (2) |
|
- | |||||
| 6 | 5303210053 | Glass-shelf |
|
- | |||||
| 7 | 3018730 | Ice Container |
|
- | |||||
| 8 | 01121808 | Ice Tray, Plastic |
|
- | |||||
| 9 | 3018731 | Trim-front (3) |
|
- | |||||
| 10 | 3018646 | Trim-front (2) |
|
- | |||||
| 11 | 3018732 | Trim-front |
|
- | |||||
| 12 | 5303210054 | Trim-rear (3) |
|
- | |||||
| 13 | 5303210060 | Trim-rear (2) |
|
- | |||||
| 14 | 5303210045 | Trim-rear |
|
- | |||||
| 15 | 3018647 | Cover-pan Upper |
|
- | |||||
| 16 | 3018750 | Trim-pan (2) |
|
- | |||||
| 17 | 3018648 | Pan-upper |
|
- | |||||
| 18 | 3018649 | Cover-pan Lower |
|
- | |||||
| 19 | 3018751 | Pan-lower |
|
- | |||||
| *46581 | 3018752 | Gasket-crisper |
|
- | |||||
| 1A | 5303209742 | Retainer-glass (3) (non-illustrated) |
|
- | |||||
| 2A | 5303209274 | Retainer-glass (non-illustrated) |
|
- | |||||
| 3A | 5303209263 | Retainer-glass (2) (non-illustrated) |
|
- |
