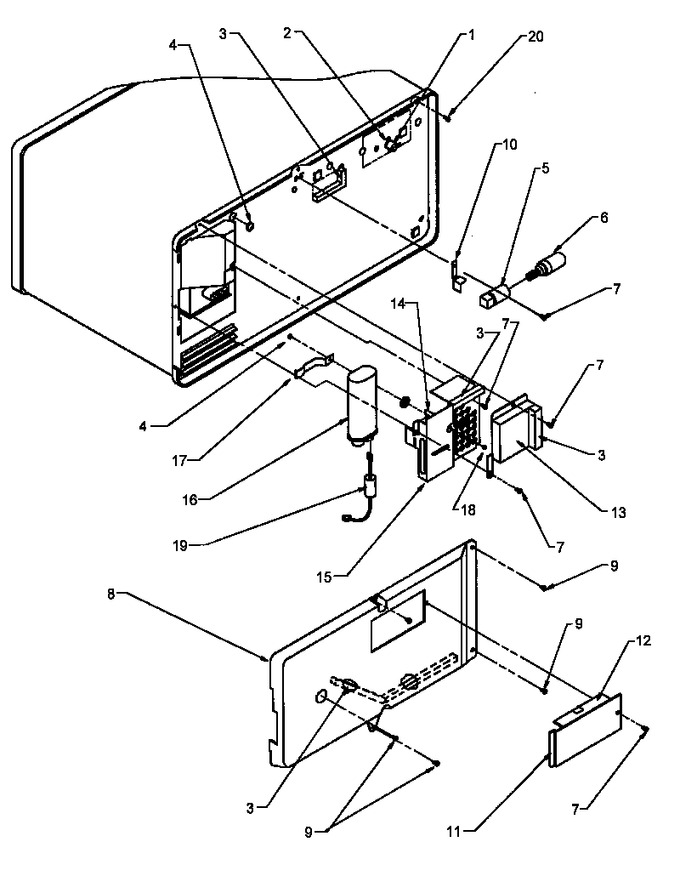

01 - Back-side Electical Components


02 - Cavity Assy


03 - Control Panel Assy


04 - Door Assy


05 - Interior Elec Components And Mtg Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1751172501		Protector Thermal 25amp Cavity		Appelez-nous	-
2	M0251717		Screw		Appelez-nous	-
3	5031-SS		Gasket (1=1ft.)		Appelez-nous	-
4	5140-FF		Tie-elect.		Appelez-nous	-
5	46534P01		Light Holder		Appelez-nous	-
6	46536P01		Light Bulb (230/240 Vac)		Appelez-nous	-
7	5027-ZZ		Screw		Appelez-nous	-
8	3010010111		Cover, Rear (grey)		Appelez-nous	-
9	5147-GG		Screw, Thermostat		Appelez-nous	-
10	46530P01		Lamp Bracket Int`l 1100		Appelez-nous	-
11	3010012808		Door, Lamp Access		Appelez-nous	-
12	M0275144		Tape Alum		Appelez-nous	-
13	44756P02		Cover Lead 1435.001		Appelez-nous	-
14	10744601		Cover-mylar		Appelez-nous	-
15	M8D373		Cap Bracket		Appelez-nous	-
16	10804108		Capacitor		Appelez-nous	-
17	10822101		Strap, Capacitor		Appelez-nous	-
18	Y00000000		See Note Nut		Appelez-nous	-
19	WP13091701		Rectifier   (Replaces: B8383102)				$ 31.71
20	Y00000000		See Note Screw		Appelez-nous	-
