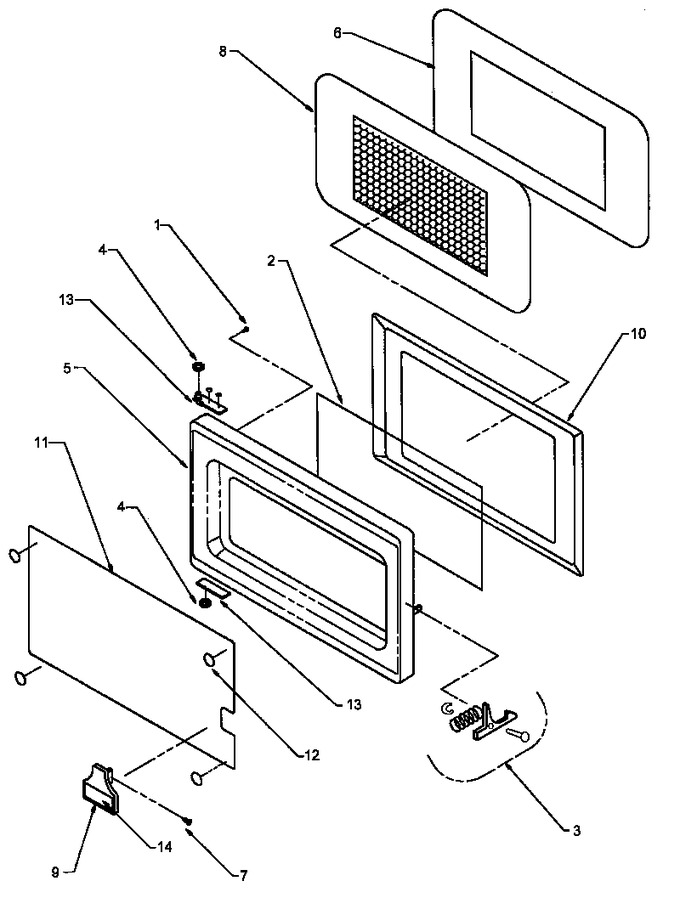

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Back-side Electical Components
02 - Cavity Assy
03 - Control Panel Assy
04 - Door Assy
05 - Interior Elec Components And Mtg Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP8281236 | No.8 Ab X 3/8`` Screw (Replaces: 5149-V) |
|
$ 6.80 | |||||
| 2 | R0163294 | Kit, Middle Window |
|
- | |||||
| 3 | R0163249 | Door Hook Kit |
|
- | |||||
| 4 | 40370P01 | Nylon Flat Washer |
|
- | |||||
| 5 | R0163248 | Door Back |
|
- | |||||
| 6 | 10785101 | Window, Inner |
|
- | |||||
| 7 | 5051032202 | Set Screw No.10 X .25 |
|
- | |||||
| 8 | R0163246 | Door Plate,inner |
|
- | |||||
| 9 | 3000029501 | Door Handle-e Ct |
|
- | |||||
| 10 | R0163247 | Filler, Door |
|
- | |||||
| 11 | 4180028602 | Window Menumstr Asy Utc |
|
- | |||||
| 12 | 5144-UU | .187 Dia Push Rivet Blk |
|
- | |||||
| 13 | R0163250 | Hinge Assy Kit |
|
- | |||||
| 14 | 10805806 | Inlay, Door Handle |
|
- |
