SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door
04 - Service Drawer
New Model Search:

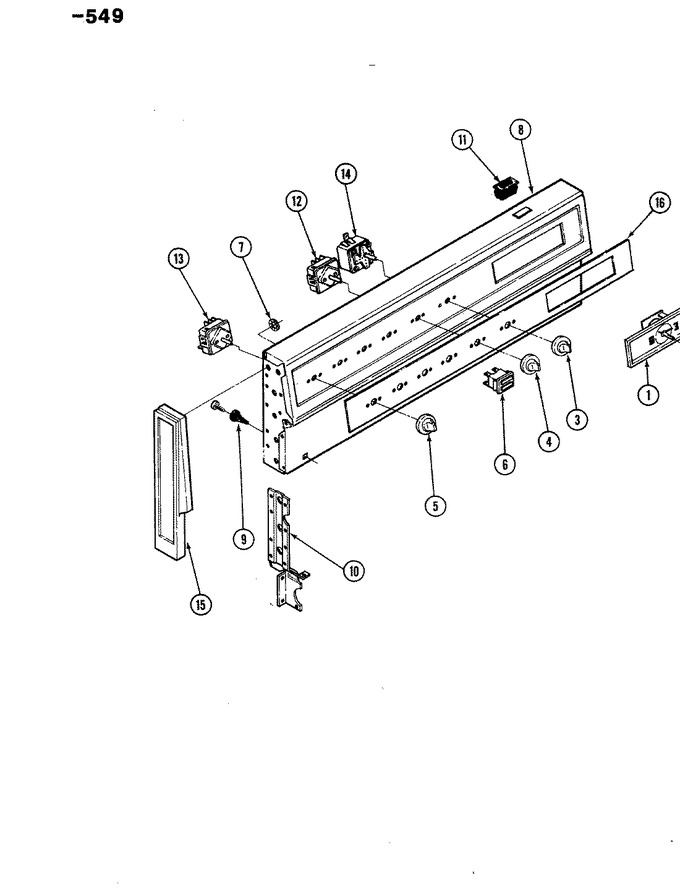

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7602P066-60 | Clock | 1 |
|
- | ||||
| 1 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 1 |
|
$ 6.98 | ||||
| 1 | 4005F004-80 | Cover, Bkgd Wire | 1 |
|
- | ||||
| 2 | 7711P126-60 | Knob, Clock | 1 |
|
- | ||||
| 3 | 7711P407-60 | Knob, Thermostat | 1 |
|
- | ||||
| 4 | 7711P406-60 | Knob, Selector | 1 |
|
- | ||||
| 5 | 7711P346-60 | Knob, Infinite | 1 |
|
- | ||||
| 6 | 7407P011-60 | Light, Indicator | 1 |
|
- | ||||
| 7 | 7103P053-60 | Nut, Push-on End Cap | 1 |
|
- | ||||
| 8 | 2601W263-90 | Backguard Assy | 1 |
|
- | ||||
| 9 | 7105P002-60 | Support, Main Top | 1 |
|
- | ||||
| 9 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 1 |
|
Immediately | $ 12.62 | |||
| 10 | 3807F012-80 | Support | 1 |
|
- | ||||
| 10 | WPW10068250 | Screw (Replaces: 7101P074-60) | 1 |
|
$ 3.66 | ||||
| 10 | 3807F010-80 | Support | 1 |
|
- | ||||
| 11 | 7403P067-60 | Switch, Rocker (blk) | 1 |
|
$ 91.35 | ||||
| 12 | 7403P198-60 | Switch, Selector | 1 |
|
- | ||||
| 13 | 7403P183-60 | Switch, Inf. 250v | 1 |
|
- | ||||
| 14 | 7404P030-60 | Thermostat | 1 |
|
- | ||||
| 15 | 7726P031-60 | Trim, Bkgd End (lt) | 1 |
|
- | ||||
| 15 | 7726P032-60 | Trim, Bkgd End (rt) | 1 |
|
- | ||||
| 16 | 7703P214-60 | Trim, Bkgd | 1 |
|
- |
