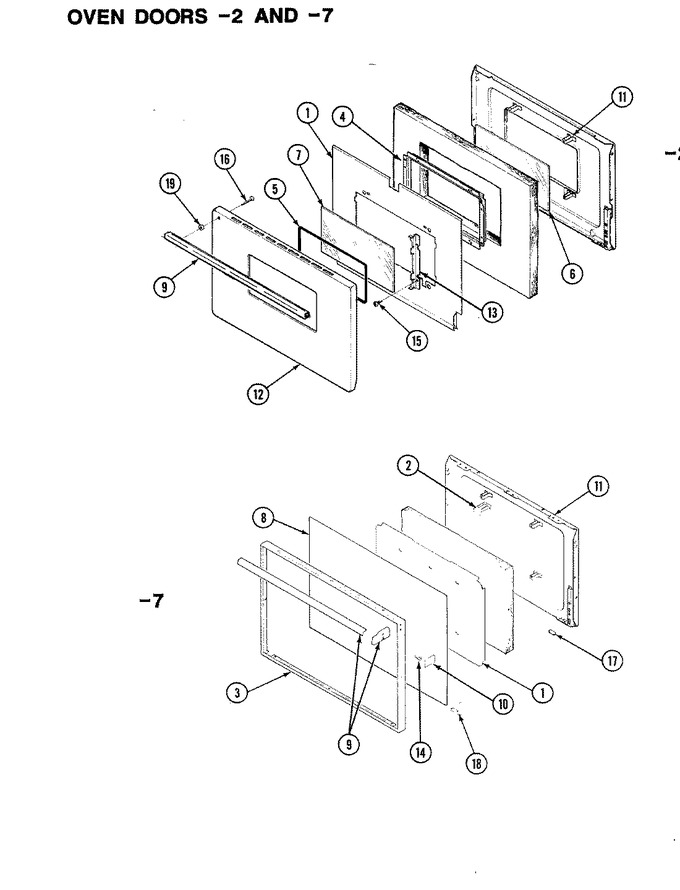

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3601F026-51		Baffle		Appelez-nous	-
1	3601F094-51		Baffle, Oven Door		Appelez-nous	-
2	7112P034-60		Clip, Door		Appelez-nous	-
3	7706P245-60		Frame, O Door		Appelez-nous	-
4	3603F013-80		Frame, Window----na		Appelez-nous	-
5	7201P017-60		Gasket, Window				$ 52.69
6	7902P035-60		Glass, Door Inner		Appelez-nous	-
7	7902P051-60		Glass		Appelez-nous	-
8	7902P275-60		Glass, Door		Appelez-nous	-
9	7701P030-60		Handle, Door (chr)		Appelez-nous	-
9	7701P048-60		Handle, Storage Drawer		Appelez-nous	-
10	7728P012-60		Insert, Oven Door Handle		Appelez-nous	-
11	2402W091-16		Lining Assy, Ov Dr		Appelez-nous	-
11	2402W091-23		Lining Assy, Ov Dr		Appelez-nous	-
11	2402W090-16		Lining Assy, Ov Dr		Appelez-nous	-
11	2402W090-23		Lining Assy, Ov Dr		Appelez-nous	-
12	2401F051-84		Panel, Oven Door Alm		Appelez-nous	-
13	WP7101P126-60		Screw, Frame   (Replaces: 7101P126-60)			Immediately	$ 6.85
13	3804F095-80		Retainer, Glass		Appelez-nous	-
14	7101P259-60		Screw		Appelez-nous	-
15	WP7101P126-60		Screw   (Replaces: 7101P061-60)			Immediately	$ 6.85
16	WP3387230		Screw, Clamp   (Replaces: 7101P080-60)			Immediately	$ 7.69
17	WP854334		Seal, Rubber   (Replaces: 7208P011-60)				$ 11.95
18	8010P045-60		Spacer, Glass Corner		Appelez-nous	-
19	8010P002-60		Spacer, Handle		Appelez-nous	-
