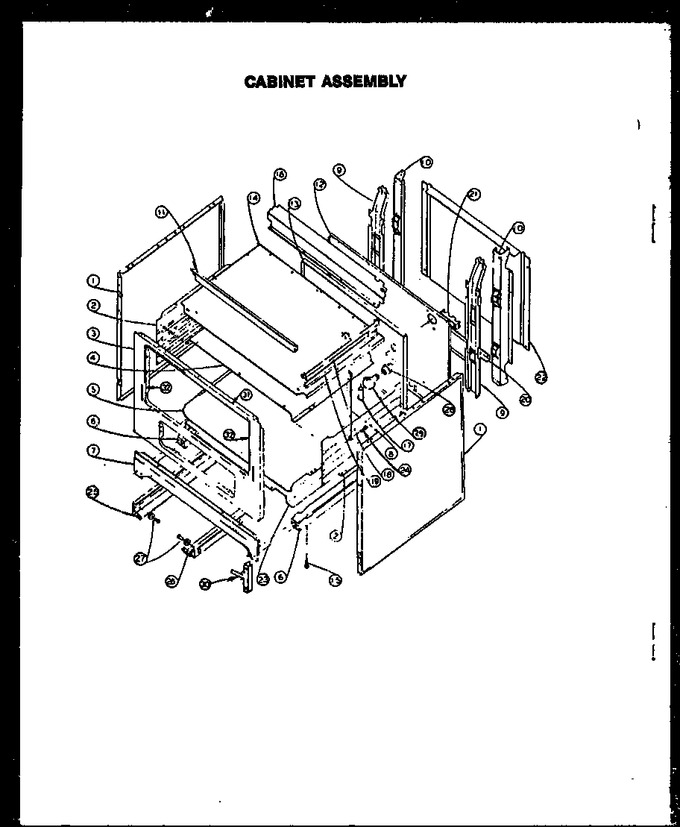

02 - Cabinet Assy


03 - Electrical And Lower Oven Components


04 - Page 1


05 - Storage Drawer Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	088652L		Sub 311003n, Side Panel		Appelez-nous	-
1	Y088652B		Panel, Bodyside, Black		Appelez-nous	-
2	Y00000000		See Note Oven Side Liner -- (not Field Replaceable)		Appelez-nous	-
3	Y00000000		See Note Main Front -- (not Field Replaceable)		Appelez-nous	-
4	Y00000000		See Note Oven Top Liner -- (not Field Replaceable)		Appelez-nous	-
5	Y00000000		See Note Oven Bottom -- (not Field Repaceable)		Appelez-nous	-
6	0088654		Rail, Base		Appelez-nous	-
7	52744CG		Base, Main Front		Appelez-nous	-
8	0087023		Support Rod		Appelez-nous	-
9	0052742		Vertical Sup. (j)		Appelez-nous	-
10	Y0052743		Vertical Support		Appelez-nous	-
11	Y0086935		Switch Cover		Appelez-nous	-
12	Y0088752		Main Back		Appelez-nous	-
13	Y00000000		See Note Oven Backliner -- (not Field Replaceable)		Appelez-nous	-
14	Y0056011		Burner Box		Appelez-nous	-
15	Y0088651		Sub 62362, Leg, Leveling		Appelez-nous	-
16	Y0088819		Burner Box Rear Cover		Appelez-nous	-
17	Y0056015		Tube, Oven Vent		Appelez-nous	-
18	Y0088816		Wire Channel		Appelez-nous	-
19	Y0088817		Wire Channel Support		Appelez-nous	-
20	Y0088832		Bottom Wire Cover Support		Appelez-nous	-
21	WP8203546		Terminal Block   (Replaces: Y0088776)			Immediately	$ 27.12
22	Y0056012		Wire Cover, Main Back		Appelez-nous	-
23	Y0088820		Support, Oven Bottom Insul.		Appelez-nous	-
24	0088779		Shoulder Screw		Appelez-nous	-
25	88565		Drawer Track, R.h.		Appelez-nous	-
26	88565		Drawer Track, R.h.		Appelez-nous	-
27	0088765		Roller		Appelez-nous	-
28	Y0088674		Socket, Oven Light		Appelez-nous	-
29	8009		Bulb - Light   (Replaces: 20478)			Immediately	$ 16.80
30	Y0086790		Hinge, Oven Door		Appelez-nous	-
31	0056089		Seal, Oven Door		Appelez-nous	-
32	Y0056092		Seal, Oven-top & Bottom 24``		Appelez-nous	-
NI	Y0310214		Back Bar		Appelez-nous	-
