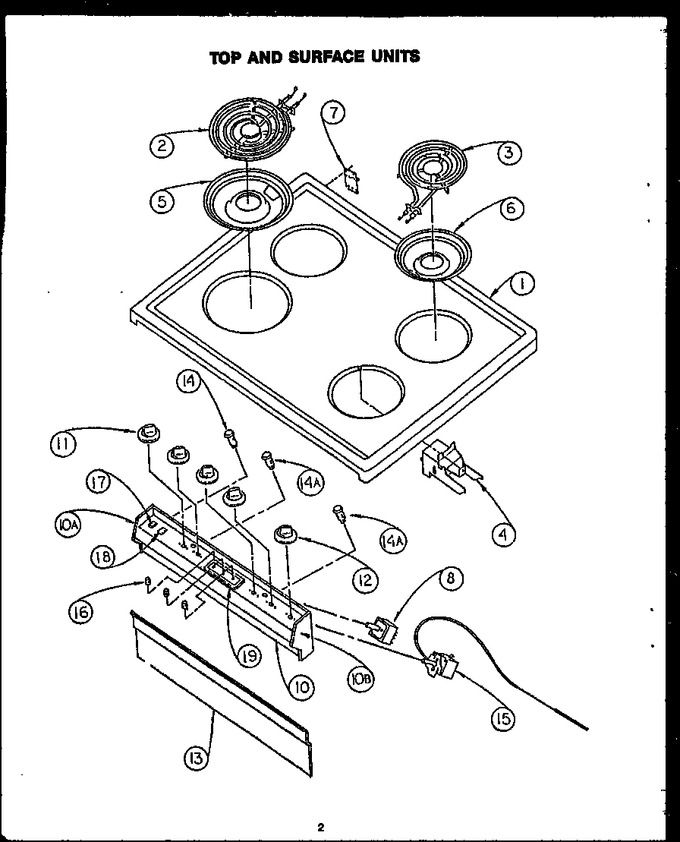

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	56013K		Main Top		Appelez-nous	-
1	086931L		Main Top, Almond		Appelez-nous	-
2	WPY04000035		Sub 51582, Element 8``   (Replaces: Y0086918)				$ 160.60
3	WPY04000036		Sub 51583, Element 6``   (Replaces: Y0086917)				$ 88.70
4	330031		Used In 0089336 Term Blk Kit   (Replaces: Y0086726)			Immediately	$ 14.48
5	Y0088810		Bowl, Burner 8`` (chrome)		Appelez-nous	-
6	WPW10196406		Sub 58591, Burner Bowl   (Replaces: Y0088811)			Immediately	$ 12.05
7	0088782		Hinge, Main Top		Appelez-nous	-
8	WP74011243		Switch, Infinite   (Replaces: 0055044)				$ 115.88
10	0086975		End Cap, Lh		Appelez-nous	-
10	0086976		End Cap, Rh		Appelez-nous	-
10	Y0056098		Manifold Panel		Appelez-nous	-
11	Y0055033		Knob, Top Burner		Appelez-nous	-
12	Y0055034		Knob, Thermostat		Appelez-nous	-
13	Y0086935		Switch Cover		Appelez-nous	-
14	Y0056016		Ind Light, Oven		Appelez-nous	-
14	56018		Liner,door & Carton				$ 199.99
15	Y0056146		Thermostat		Appelez-nous	-
16	Y0055020		Knob, Clock		Appelez-nous	-
17	Y0056017		Switch, Light (blk)		Appelez-nous	-
18	56128		Pad, Bumper   (Replaces: Y56128)				$ 6.95
19	56095P		Belt,cylinder   (Replaces: 56095)			Immediately	$ 33.03
NI	Y0056014		Relay, Control 120v		Appelez-nous	-
NI	Y0088643		Connector		Appelez-nous	-
