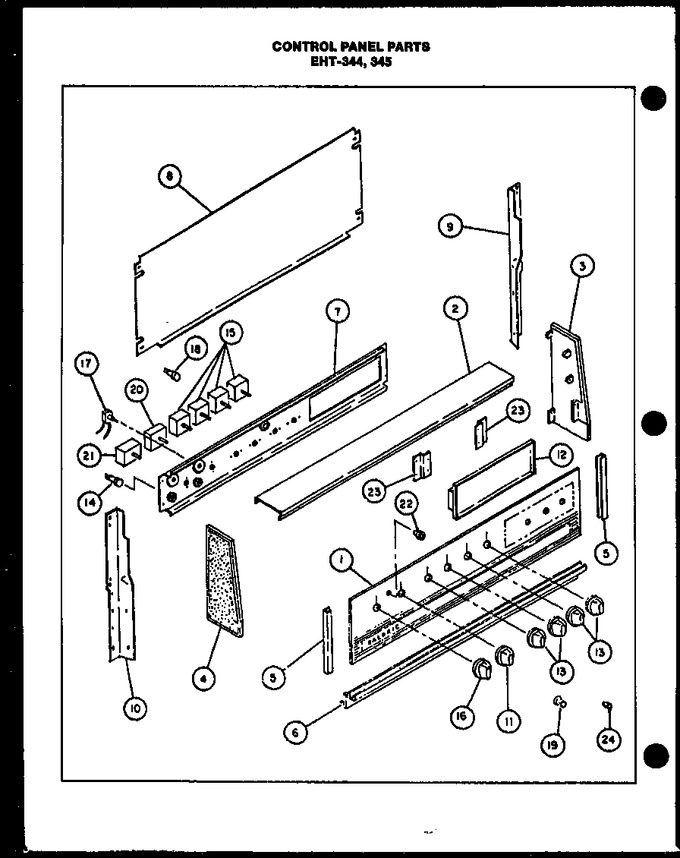

01 - Control Panel Parts


02 - Electrical Components


03 - Oven Cabinet Assy


04 - Page 1


05 - Storage Drawer Parts


06 - Top And Oven Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0301301		Glass, Control Panel		Appelez-nous	-
2	300470B		Top Trim, Backguard		Appelez-nous	-
3	0300695		End Cap-r.h.		Appelez-nous	-
4	0300694		End Cap-l.h.		Appelez-nous	-
5	0059768		Channel, Glass (black)		Appelez-nous	-
6	301079L		Trim, Backguard		Appelez-nous	-
6	301079W		Trim, Lower - White		Appelez-nous	-
7	Y0301331		Control Panel, Backguard		Appelez-nous	-
8	0058886		Cover, Backguard		Appelez-nous	-
9	Y0058920		Support, Backguard Rt		Appelez-nous	-
10	Y0058919		Support Backguard Lh		Appelez-nous	-
11	0300999		Knob, Selector		Appelez-nous	-
12	0300445		Clock, T.o.d.		Appelez-nous	-
13	0300708		Knob, Top Element		Appelez-nous	-
14	Y0071820		Indicator Light		Appelez-nous	-
15	0071745		Switch, Infinite		Appelez-nous	-
16	0301000		Knob, Thermostat		Appelez-nous	-
17	0300778		Kit, Light Switch		Appelez-nous	-
18	Y0071820		Indicator Light		Appelez-nous	-
19	0301215		Knob, Clock		Appelez-nous	-
20	Y0300900		Switch, Selector		Appelez-nous	-
21	Y0063415		Thermostat		Appelez-nous	-
22	0065051		Bezel, Panel Switch		Appelez-nous	-
NI	Y0065052		Speednut		Appelez-nous	-
