01 - Control Panel Parts
02 - Electrical Components
03 - Oven Cabinet Assy

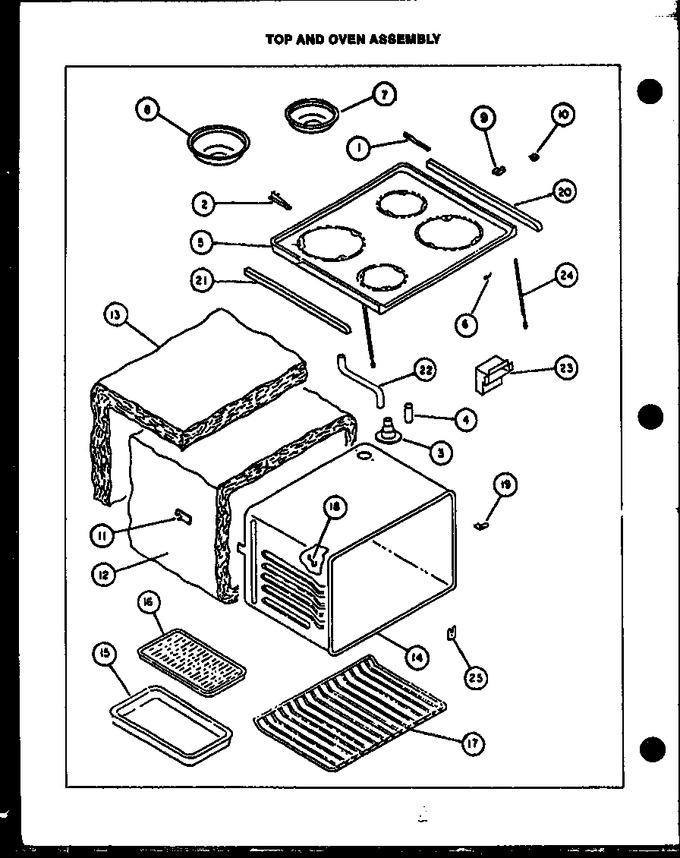

04 - Page 1
05 - Storage Drawer Parts
06 - Top And Oven Assy
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 0091517 | Bracket Assembly |
|
- | |||||
| 2 | 0091518 | Bracket Assembly |
|
- | |||||
| 3 | Y0059799 | Vent Adaptor |
|
- | |||||
| 4 | 0063336 | Tube, Vent Ext. |
|
- | |||||
| 6 | 0071668 | Pin, Support Rod |
|
- | |||||
| 7 | WPW10196406 | Bowl, Drip (6`` W/hole-chr) (Replaces: Y0058591) |
|
Immediately | $ 12.05 | ||||
| 8 | X042142 | Pkg. 160, B.b. 8`` |
|
- | |||||
| 9 | 0071203 | Wire Clamp |
|
- | |||||
| 10 | Y0096604 | Nut, Type ``u`` |
|
- | |||||
| 11 | Y0058852 | Bracket, Oven Cavity |
|
- | |||||
| 12 | Y0301031 | Insulation, Oven Wrap |
|
- | |||||
| 13 | Y0301032 | Insulation, Top & Rear |
|
- | |||||
| 14 | W10124600 | Oven Shell |
|
- | |||||
| 15 | Y0011161 | Sub 11161cg, Broiler Pan |
|
- | |||||
| 16 | 4396923 | Broiler Grid (Replaces: Y0098682) |
|
Immediately | $ 52.04 | ||||
| 17 | WP314763J | Rack,oven (Replaces: Y0067810) |
|
$ 70.11 | |||||
| 18 | Y0067053 | Clip, Thermo Capillary |
|
- | |||||
| 19 | 0300278 | Chip Cover |
|
- | |||||
| 24 | Y0091542 | Support, Maintop |
|
- | |||||
| 25 | Y0063351 | Capillary Hole Cover |
|
- | |||||
| NI | W10124599 | Ejt-346 Continous Clean: Use S |
|
- |
