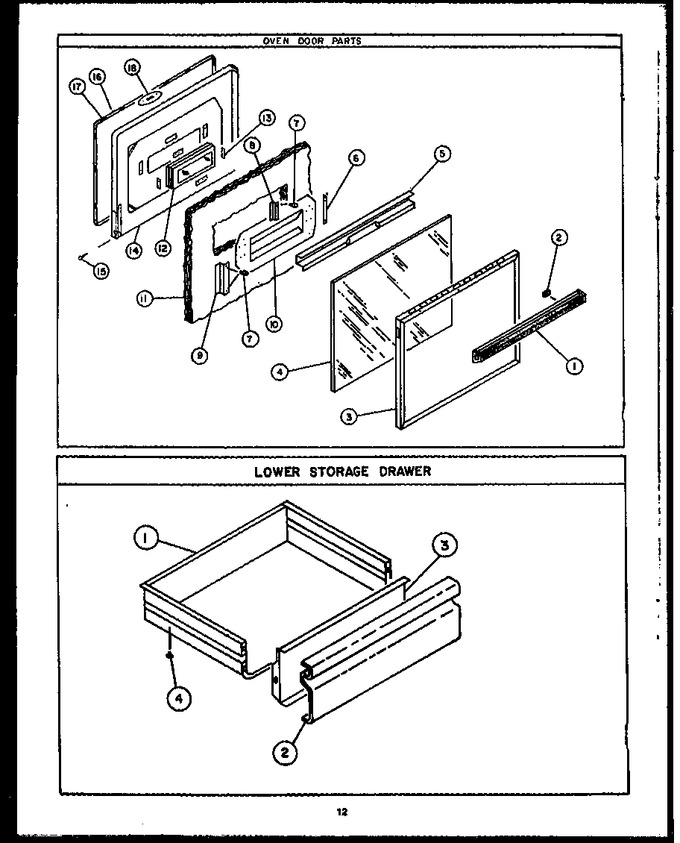

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 0063701 | Sub 60677 Storage Drawer |
|
- | |||||
| 1 | 0068150 | Handle, Door |
|
- | |||||
| 2 | 063702L | Panel, Drawer L |
|
- | |||||
| 2 | Y063702H | Panel, Drawer Hvst. |
|
- | |||||
| 2 | Y0079978 | Spacer Door Handle |
|
- | |||||
| 2 | 063702W | Panel, Drawer Wht |
|
- | |||||
| 2 | Y063702C | Panel, Drawer Cof. |
|
- | |||||
| 2 | 063702A | Panel, Drawer Avo. |
|
- | |||||
| 3 | 0063704 | Support, Drawer Panel |
|
- | |||||
| 3 | 0063703 | Frame, Glass Door |
|
- | |||||
| 4 | 0092582 | Plastic Glider |
|
- | |||||
| 4 | Y0063653 | Panel, Black Glass |
|
- | |||||
| 5 | 0063193 | Plate, Air Baffle |
|
- | |||||
| 5 | 0041954 | Snap Rivet |
|
- | |||||
| 6 | Y0063658 | Support Bracket, Gl Pnl |
|
- | |||||
| 7 | Y0063661 | Bumper, Oven Door |
|
- | |||||
| 8 | 0063196 | Support Bkt., Glass |
|
- | |||||
| 9 | Y0063658 | Support Bracket, Gl Pnl |
|
- | |||||
| 10 | Y0063656 | Plate, Insulation |
|
- | |||||
| 11 | Y0063664 | Sub 41966, Insulation |
|
- | |||||
| 12 | 0041491 | Window Assy |
|
- | |||||
| 13 | Y0040992 | Sub 52629, Retainer, Glass |
|
- | |||||
| 14 | Y0063579 | Backer Oven Door Lt. Gray |
|
- | |||||
| 15 | 0091632 | Rivet |
|
- | |||||
| 16 | 0071637 | Dr. Gasket |
|
- | |||||
| 17 | 0068429 | Clip, Tinnerman |
|
- | |||||
| 18 | Y0040748 | Sub 52039, Latch Plate |
|
- |
