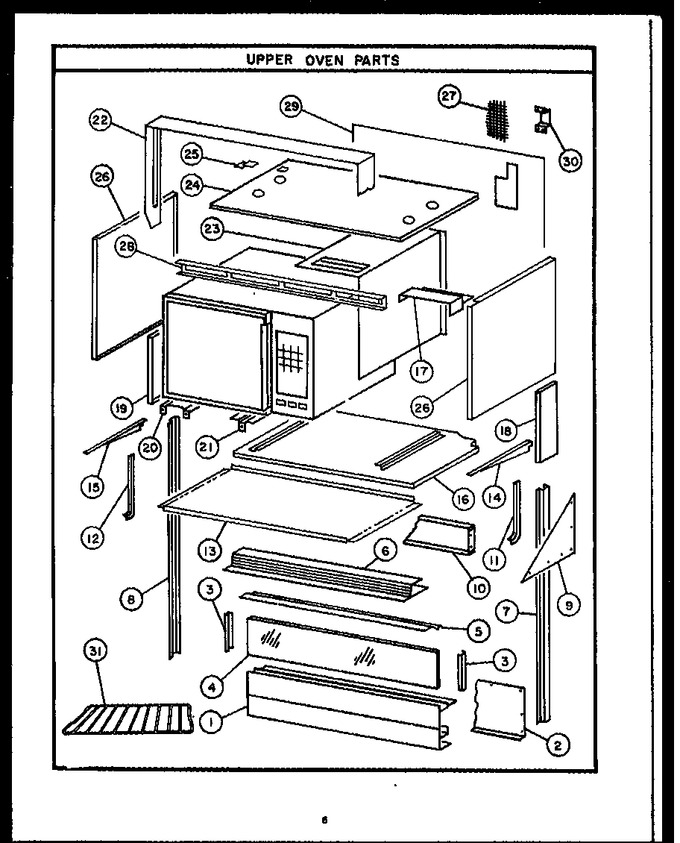

SELECT A DIAGRAM

01 - Electrical Components


02 - Microwave Oven Components


03 - Oven Door Parts


04 - Page 7


05 - Upper Control Panel Parts


06 - Upper Control Panel Parts


07 - Upper Electrical Components


08 - Upper Oven Parts


09 - Upper Oven Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0071781		Lower Trim, Splash Plate		Appelez-nous	-
2	Y0071705		Wire Cover		Appelez-nous	-
3	Y0071954		Trim, Glass		Appelez-nous	-
4	0071968		Glass, Splashplate		Appelez-nous	-
5	0071971		Rear Trim		Appelez-nous	-
6	Y0064184		Trim, Lower		Appelez-nous	-
7	Y0069401		Support Channel, L.h.		Appelez-nous	-
8	Y0069402		Support Channel, R.h.		Appelez-nous	-
9	Y0069677		Brace, Upper Oven		Appelez-nous	-
10	0071064		Panel, Surface Light		Appelez-nous	-
11	Y0091477		Trim Support		Appelez-nous	-
12	Y0091478		Trim Support		Appelez-nous	-
13	0064177		Jacket Bottom		Appelez-nous	-
14	0071972		Trim Strip, R.h. Side		Appelez-nous	-
15	Y0071973		Trim Strip, L.h. Side		Appelez-nous	-
16	0064179		Shelf		Appelez-nous	-
17	0063933		Cover, Vent		Appelez-nous	-
18	W10124635		End Panel, Middle - R.h.		Appelez-nous	-
18	W10124639		End Panel, Middle - R.h.		Appelez-nous	-
18	W10124636		End Panel, Middle - R.h.		Appelez-nous	-
18	W10124637		End Panel, Middle - R.h.		Appelez-nous	-
18	W10124638		End Panel, Middle - R.h.		Appelez-nous	-
19	W10124634		End Panel, Middle - L.h.		Appelez-nous	-
19	W10124631		End Panel, Middle - L.h.		Appelez-nous	-
19	W10124632		End Panel, Middle - L.h.		Appelez-nous	-
19	W10124633		End Panel, Middle - L.h.		Appelez-nous	-
19	W10124630		End Panel, Middle - L.h.		Appelez-nous	-
20	0064182		Channel Lh		Appelez-nous	-
21	Y0064183		Channel Rh		Appelez-nous	-
22	0064185		Trim Frame, Outer		Appelez-nous	-
23	Y0063934		Cover, Microwave		Appelez-nous	-
24	Y0064181		Jacket Top		Appelez-nous	-
25	Y0073060		Receptacle Cover		Appelez-nous	-
26	W10124849		Jacket End		Appelez-nous	-
26	W10124850		Jacket End Harvest		Appelez-nous	-
26	W10124851		Jacket End		Appelez-nous	-
26	W10124848		Jacket End		Appelez-nous	-
26	W10124852		Jacket End		Appelez-nous	-
27	0064173		Screen, Air Inlet		Appelez-nous	-
28	0064186		Vent, Extrusion		Appelez-nous	-
29	Y0062958		Cover, Rear Wire		Appelez-nous	-
30	W10125492		Baffle, Rear Cover Plate		Appelez-nous	-
31	0086412		Metal Rack W/spacers		Appelez-nous	-
