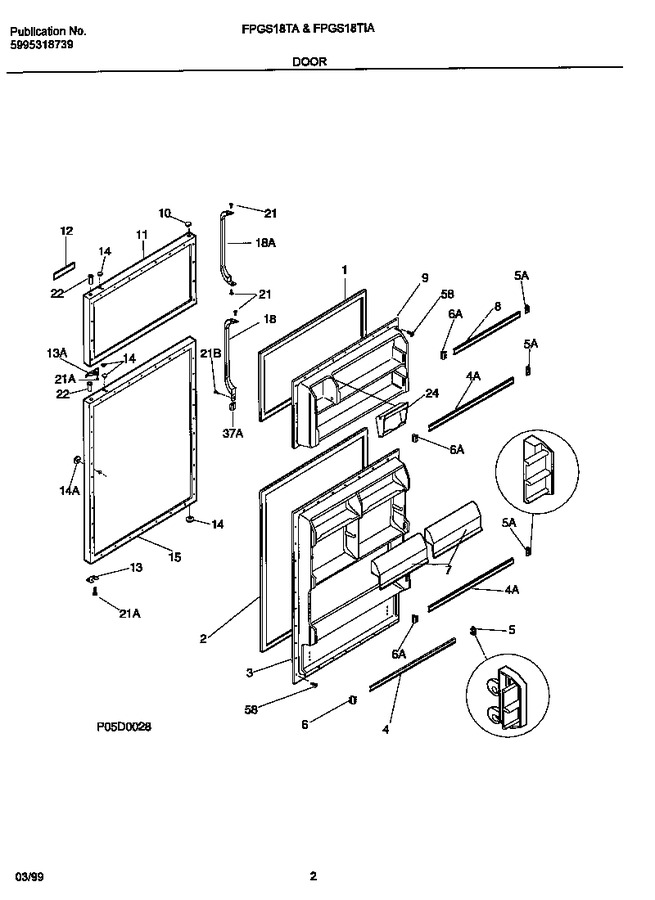

01 - Cover
02 - Door Parts
03 - Cabinet Parts
04 - Cabinet Parts
05 - Shelves And Supports
06 - Ice Maker
06 - Shelves And Supports
07 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303276826 | Gasket-frzr Door, Almond, Magnetic |
|
$ 115.08 | |||||
| 2 | 5303275772 | Gasket-refr Door, Almond, Magnetic |
|
- | |||||
| 3 | 215132101 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 5303291325 | Rack-door, Long/wide |
|
- | |||||
| 5 | 5317828701 | Support-door Rack, Rh |
|
$ 8.18 | |||||
| 6 | 5317828401 | Support-door Rack, Lh |
|
$ 11.48 | |||||
| 7 | 5303288979 | Door-dairy, (2) |
|
- | |||||
| 8 | 215139810 | Rack-door, Narrow |
|
- | |||||
| 9 | 3202033 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5303001308 | Plug-button, Almond, Hinge Brg Hole |
|
- | |||||
| 11 | 5303917345 | Panel-frzr Door, Almond, W/insulation |
|
- | |||||
| 12 | 215008602 | Nameplate Assy, Almond |
|
- | |||||
| 13 | 5303212491 | Door Stop, Refr |
|
- | |||||
| 14 | 5308000181 | Plug-button, Almond, Handle/dr Stop |
|
- | |||||
| 15 | 5303917412 | Panel-refr Door, Almond, W/insulation & Cross Brace |
|
- | |||||
| 18 | 215482121 | Handle-door, 17.37``, Almond |
|
- | |||||
| 21 | 5303272568 | Screw-handle Mtg, Cr Oval Head, 10-24(d) X 5/8, Almond, |
|
- | |||||
| 22 | 3206153 | Bearing-hinge |
|
- | |||||
| 24 | 3203047 | Dispenser-juice Can,white |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *10917 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 | |||||
| 13A | 5308000255 | Door Stop |
|
$ 42.20 | |||||
| 14A | 215352211 | Plug-button,almond ,refr Door Front , |
|
- | |||||
| 18A | 215482110 | Handle-door, 17.02``, Almond |
|
- | |||||
| 21A | 5308011745 | Screw |
|
$ 10.38 | |||||
| 21B | 215733200 | Screw-handle Mtg, Flat Head, 8-18(ab) X 1/2 |
|
- | |||||
| 37A | 215480202 | Trim-handle, End Cap, Almond, Refr Door |
|
- | |||||
| 4A | 215139809 | Rack-door, Long/narrow |
|
- | |||||
| 5A | 3206161 | Support-door Rack, Extends 1.06``, Rh |
|
- | |||||
| 6A | 3206162 | Support-door Rack, Extends 1.06``, Lh |
|
- |
