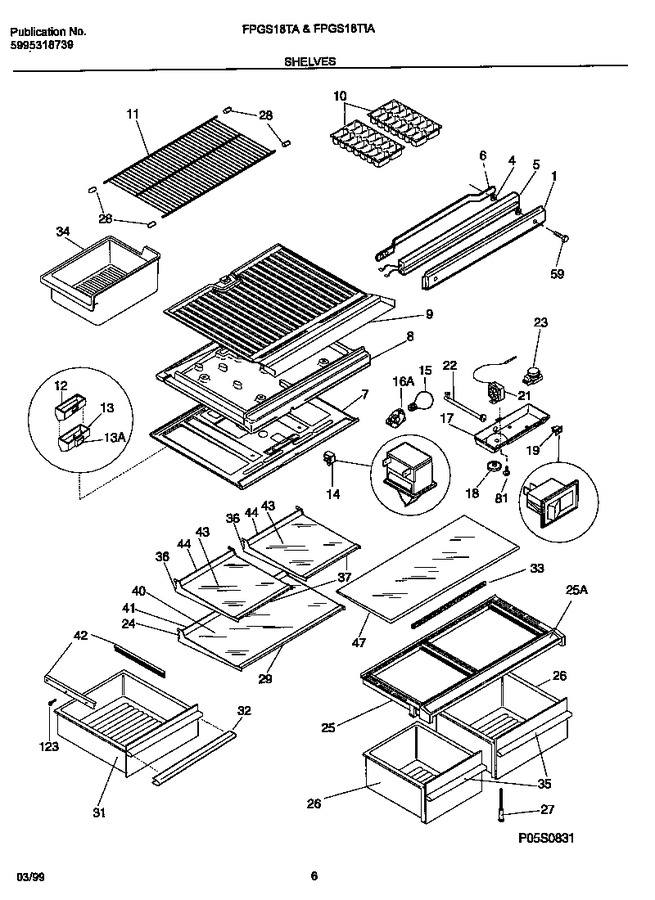

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303200370 | Mullion, Almond |
|
- | |||||
| 3 | 5303206754 | Washer No. 10 Flat, 7/32 X 7/16 Od, Steel |
|
- | |||||
| 4 | 5303200464 | Spacer, Mullion Mtg, (2) |
|
- | |||||
| 5 | 5303210351 | Heater-mullion |
|
- | |||||
| 6 | 5308010008 | Strap-mullion Mtg |
|
- | |||||
| 7 | 3018993 | Top Panel-refr |
|
- | |||||
| 8 | 3018994 | Divider - Styrofoam |
|
- | |||||
| 9 | 5303211427 | Bottom Panel-frzr |
|
- | |||||
| 10 | 215667501 | Tray-ice, Plastic |
|
Immediately | $ 6.07 | ||||
| 11 | 5303283031 | Shelf-freezer, Fixed/flat, Full Width, Wire |
|
$ 120.59 | |||||
| 12 | 5308014667 | Deflector-air, W/seal |
|
- | |||||
| 13 | 5303001448 | Cover-air Deflector |
|
- | |||||
| 14 | 5309918806 | Switch-light/lamp |
|
Immediately | $ 21.97 | ||||
| 15 | 5303001179 | Light Bulb/lamp,40 W |
|
- | |||||
| 17 | 3206390 | Box-control |
|
- | |||||
| 18 | 3206391 | Knob-temp Control |
|
- | |||||
| 19 | 5303207249 | Switch-energy Saver |
|
- | |||||
| 21 | 5303018894 | Control-temperature |
|
- | |||||
| 22 | 3018891 | Housing, Cont Cap Tube |
|
- | |||||
| 23 | 215846602 | Timer (Replaces: 215267800) |
|
Immediately | $ 28.20 | ||||
| 24 | 215069002 | Frame-full Shelf, Cantilever |
|
- | |||||
| 25 | 5303206606 | Cover-crisper Pan |
|
- | |||||
| 26 | 5303300424 | Pan-crisper, 14.34`` Wide, Rh |
|
- | |||||
| 27 | 5303205987 | Support-crisper Cvr, Adjustable |
|
$ 48.41 | |||||
| 28 | 3201150 | Cap-protector |
|
$ 4.57 | |||||
| 29 | 5303275679 | Trim-shelf, 26.12``, Front |
|
- | |||||
| 31 | 5303299811 | Pan-meat |
|
- | |||||
| 32 | 5303279439 | Trim-meat Pan |
|
- | |||||
| 33 | 5303200329 | Gasket-pan Cover, 13.25``, Rh |
|
- | |||||
| 34 | 5303288235 | Container-ice |
|
- | |||||
| 35 | 5303282659 | Trim-crisper Pan, Rh |
|
- | |||||
| 12A | 5303001449 | Seal-air Deflector (non-illustrated) |
|
$ 2.12 | |||||
| 13A | 5303200590 | Extension, Air Deflector, With Insulation |
|
- | |||||
| 16A | 218906802 | Socket-light/lamp (Replaces: 5308000815) |
|
$ 17.72 | |||||
| 17A | 5308016567 | Nut-anchor (non-illustrated) |
|
- | |||||
| 21A | 5303001260 | Screw |
|
$ 6.73 | |||||
| 23A | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| 25A | 5303280075 | Trim-crisper Cover |
|
- | |||||
| 26A | 5303299800 | Pan-crisper, 11.34`` Wide, Lh |
|
- | |||||
| 29A | 5303209274 | Retainer-glass (non-illustrated) |
|
- | |||||
| 35A | 5303275758 | Trim-crisper Pan, Lh |
|
- | |||||
| 7A | 5303001380 | Screw |
|
- | |||||
| 8A | 3018900 | Harness-wiring, Control/divider (non-illustrated) |
|
- | |||||
| 8B | 3205266 | Protector-edge (non-illustrated) |
|
$ 80.09 |
