SELECT A DIAGRAM

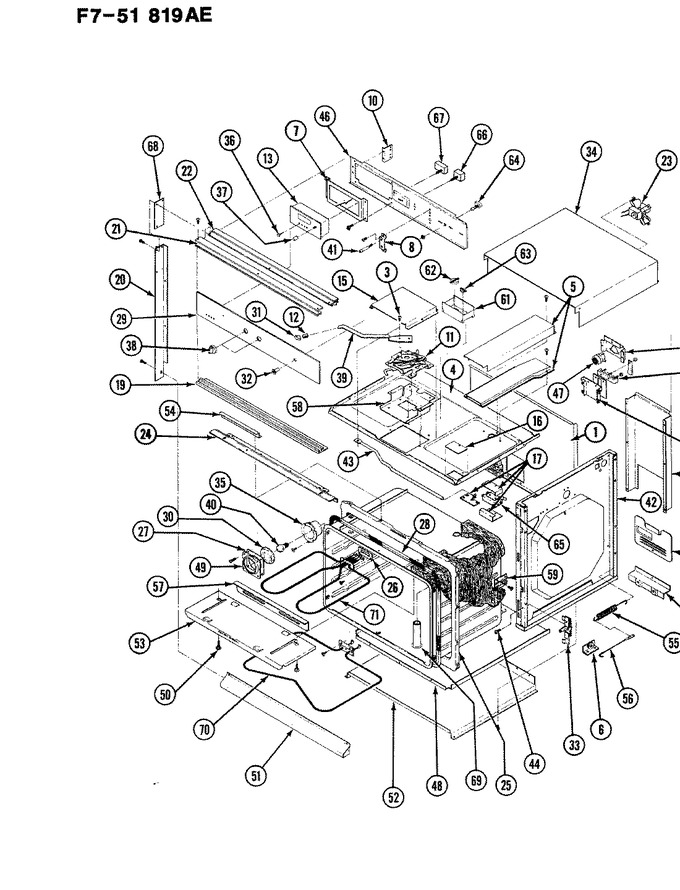

01 - Body
02 - Door Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F092-20 | Back, Main | 1 |
|
- | ||||
| 1 | 3601F106-51 | Baffle, Side Panel | 1 |
|
- | ||||
| 2 | 7401P016-60 | Block, Terminal | 1 |
|
- | ||||
| 3 | 7116P002-60 | Bolt, Door Lock | 1 |
|
- | ||||
| 4 | 4011F180-80 | Bottom, Burner Box | 17 |
|
- | ||||
| 4 | 4011F133-80 | Bottom, Burner Box | 1-16 |
|
- | ||||
| 5 | 4006W052-45 | Vent Box Assy. | 1 |
|
- | ||||
| 5 | 3801F093-51 | Bracket | 1 |
|
- | ||||
| 6 | 12400018 | Bracket, Cable Roller | 1 |
|
- | ||||
| 7 | 3801F095-45 | Bracket, Clock Mtg | 1 |
|
- | ||||
| 8 | 3801F099-20 | Bracket, Ind Lt | 1 |
|
- | ||||
| 9 | 3801F024-51 | Bracket | 1 |
|
- | ||||
| 10 | 3801F098-51 | Bracket, Switch Mtg | 1 |
|
- | ||||
| 11 | 8002P014-60 | Catch | 1 |
|
- | ||||
| 11 | 7111P002-60 | Clamp, Wire 3/4 | 1 |
|
- | ||||
| 11 | 3818F027 | Channel, Switch Lock | 1 |
|
- | ||||
| 12 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 1 |
|
Immediately | $ 11.07 | |||
| 12 | 7112P003-60 | Clip, Latch Handle | 1 |
|
- | ||||
| 12 | 7112P019-60 | Clip, Hinge Pin | 1 |
|
- | ||||
| 13 | 7417P002-60 | Connector, Pin | 1 |
|
- | ||||
| 13 | 7417P001-60 | Connector, Single | 1 |
|
- | ||||
| 13 | 8312P017-60 | Shaft, Clock | 1 |
|
- | ||||
| 13 | 7601P047-60 | + Clock | 1 |
|
- | ||||
| 14 | 4005F013-80 | Shield | 1 |
|
- | ||||
| 15 | 4005F137-80 | Cover, Catch Assy. | 1 |
|
- | ||||
| 16 | 4005F163-51 | Cover, Switch | 1 |
|
- | ||||
| 16 | 4005F262-51 | Cover, Fan | 1 |
|
- | ||||
| 17 | 4005F159-45 | Cover, Vent Box | 1 |
|
- | ||||
| 17 | 4005F139-51 | Cover, Switch | 1 |
|
- | ||||
| 18 | 4005F157-20 | Cover, Wire Housing | 1 |
|
- | ||||
| 19 | 7706P146-60 | Extrusion, Ctrl Bot | 1 |
|
- | ||||
| 20 | 7706P144-60 | Trim, Side (right) | 1 |
|
- | ||||
| 20 | 7706P201-60 | Extrusion, Top | 1 |
|
- | ||||
| 20 | 7706P145-60 | Trim,side (left) | 1 |
|
- | ||||
| 21 | 7756P015-60 | Extrusion, Top Front | 1 |
|
- | ||||
| 22 | 7706P167-60 | Trim, Filler Strip | 1 |
|
- | ||||
| 23 | 7427P004-60 | Fan, Assembly | 1 |
|
- | ||||
| 24 | 4012F018-80 | Front,burner Box Bottom | 1 |
|
- | ||||
| 25 | 2201F033-23 | Front, Oven | 1 |
|
- | ||||
| 26 | 7201P014-60 | Gasket, Housing | 1 |
|
- | ||||
| 26 | 7201P003-60 | Gasket, Element | 1 |
|
- | ||||
| 27 | 7201P015-60 | Gasket, Lamp Retainer | 1 |
|
- | ||||
| 28 | 7201P036-60 | Gasket, Oven | 1 |
|
$ 118.90 | ||||
| 29 | 7912P036-60 | Glass Control Panel | 1-7 |
|
- | ||||
| 29 | 7912P047-60 | Glass, Control | 8 |
|
- | ||||
| 30 | 7902P057-60 | Glass, Lamp Guard | 1 |
|
- | ||||
| 31 | 7701P068-60 | Handle, Latch (blk) | 1 |
|
- | ||||
| 32 | 7711P008-60 | Knob, Light Switch | 1-7 |
|
- | ||||
| 32 | W10124350 | Not Required Part Or See Note | 8 |
|
- | ||||
| 33 | 7106P024-60 | Hinge (incl. Spring) | 12 |
|
- | ||||
| 33 | 3418F030-34 | Hinge, Oven Door (rt) | 1-11 |
|
- | ||||
| 33 | 3418F029-34 | Hinge, Oven Door (lt) | 1-11 |
|
- | ||||
| 34 | 4001F037-51 | Housing, Fan | 1 |
|
- | ||||
| 35 | 7002P048-60 | Insulation, Door Lock | 1-14 |
|
- | ||||
| 35 | 3604F159-45 | Shield Insulation, Catch | 15 |
|
- | ||||
| 35 | 4001F020-13 | Housing | 1 |
|
- | ||||
| 35 | 4396923 | Insert, Broiler Pan (Replaces: 3413F006-13) | 1 |
|
Immediately | $ 52.04 | |||
| 36 | 7711P171-60 | Knob, Clock (button-blk) | 1 |
|
$ 19.90 | ||||
| 37 | 7711P172-60 | Knob, Clock (blk) | 1 |
|
$ 23.55 | ||||
| 38 | 7711P347-60 | Knob, Selector | 1 |
|
- | ||||
| 38 | 7711P348-60 | Knob, Thermostat | 1 |
|
- | ||||
| 39 | 8009P009-60 | Lever, Door Lock | 1 |
|
- | ||||
| 40 | 40A15 | Bulb, Oven (Replaces: 7407P026-60) | 1 |
|
Immediately | $ 1.98 | |||
| 41 | 7407P007-60 | Light, Indicator----na | 1 |
|
- | ||||
| 42 | 4009W030-20 | Lining, Inner Side | 1-11 |
|
- | ||||
| 42 | 4009W066-80 | Lining,inner Side(l) | 12 |
|
- | ||||
| 43 | 4396923 | Pan, Broiler (Replaces: 3401F008-13) | 1 |
|
Immediately | $ 52.04 | |||
| 43 | 7807P004-60 | Link, Switch | 1 |
|
- | ||||
| 43 | 7103P045-60 | Nut, Nylon | 1 |
|
- | ||||
| 44 | 7113P002-60 | Pin, Hinge | 1 |
|
$ 9.05 | ||||
| 45 | 3605F148-80 | Plate, Conduit | 5 |
|
- | ||||
| 45 | 3605F031-80 | Plate, Conduit | 1-4 |
|
- | ||||
| 45 | 3605F146-51 | Plate, Conduit Reinforcement | 5 |
|
$ 6.06 | ||||
| 45 | W10124350 | Not Required Part Or See Note | 1-4 |
|
- | ||||
| 46 | 7801P030-60 | Rack, Oven | 1 |
|
$ 57.14 | ||||
| 46 | 3605F107-20 | Plate, Switch Mtg | 1 |
|
- | ||||
| 46 | 8308P001-60 | Polish, Electrol Restoring | 1 |
|
- | ||||
| 47 | 7408P002-60 | Receptacle, Lamp | 1 |
|
- | ||||
| 48 | 3804F093-20 | Retainer, Insulation | 1-13 |
|
- | ||||
| 48 | 3804F102-80 | Retainer, Bottom Insulation | 14 |
|
- | ||||
| 48 | 3804F022-45 | Retainer | 1 |
|
- | ||||
| 48 | 3804F051-80 | Retainer, Glass | 1 |
|
- | ||||
| 49 | 7107P017-60 | Rivet | 1 |
|
- | ||||
| 49 | 3804F012-45 | Retainer, Lamp Guard | 1 |
|
- | ||||
| 50 | 7208P002-60 | Seal | 1 |
|
- | ||||
| 50 | W10124350 | Not Required Part Or See Note | 1-4 |
|
- | ||||
| 50 | 7208P007-60 | Seal, Silastic | 1 |
|
- | ||||
| 50 | 7101P101-60 | Screw, Thermostat | 1 |
|
- | ||||
| 50 | WP7101P126-60 | Screw (Replaces: 7101P057-60) | 5 |
|
Immediately | $ 6.85 | |||
| 50 | WP4159193 | Screw (Replaces: 7101P018-60) | 1 |
|
$ 4.29 | ||||
| 50 | 7101P005-60 | Screw | 1 |
|
- | ||||
| 51 | 3604W002-00 | Shield, Lower Vent | 1-11 |
|
- | ||||
| 51 | 3604W152-70 | Shield,lower Vent (blk) | 12 |
|
- | ||||
| 52 | 3604F073-20 | Shield, Bottom | 1 |
|
- | ||||
| 53 | 3604F092-45 | Shield, Broil | 1 |
|
- | ||||
| 54 | 7214P001-60 | Sleeve, Switch | 8 |
|
- | ||||
| 54 | 7214P001-60 | Sleeve, Switch | 1-7 |
|
- | ||||
| 54 | 3604F074-20 | Nof | 1 |
|
- | ||||
| 55 | 3420A034-34 | Stop Assy., Hinge | 1 |
|
- | ||||
| 55 | 7803P031-60 | Spring, Door | 1 |
|
- | ||||
| 56 | 8019P001-60 | Strap Cable | 1 |
|
- | ||||
| 57 | 3807F176-13 | Support | 1 |
|
- | ||||
| 58 | 3807F408-45 | Support, Catch Assy. | 17 |
|
- | ||||
| 58 | 3807F195 | Support, Latch | 1-16 |
|
- | ||||
| 59 | 3807F205-45 | Support, Oven Rear | 1 |
|
- | ||||
| 60 | 3807F157-80 | Support, Terminal Block | 1 |
|
- | ||||
| 61 | 3807F219-51 | Support, Therm Disc | 1 |
|
- | ||||
| 62 | 7403P063-60 | Switch, High Limit | 1-5 |
|
$ 156.41 | ||||
| 62 | 7403P199-60 | Switch, Hi Limit | 6 |
|
- | ||||
| 63 | 7103P089-60 | Nut, Projection Weld | 1 |
|
- | ||||
| 64 | 7403P019-60 | Switch, Light | 1-7 |
|
- | ||||
| 64 | 7403P104-60 | Switch, Oven Lamp | 8 |
|
- | ||||
| 65 | 7403P045-60 | Switch, Door Lock | 18 |
|
- | ||||
| 66 | 7403P023-60 | Switch, Selector | 1 |
|
- | ||||
| 67 | 7404P051-60 | Thermostat | 1 |
|
- | ||||
| 68 | 7726P023-60 | Trim, End Cap | 1 |
|
- | ||||
| 69 | 8026A009-60 | Tube, Oven Vent | 1 |
|
- | ||||
| 70 | WPY04000041 | Element,bake (Replaces: 7406P010-60) | 1 |
|
$ 133.20 | ||||
| 71 | WPY04000048 | Element,broil (Replaces: 7406P003-60) | 1 |
|
$ 160.58 | ||||
| 72 | 8110P113-60 | Manual, Use & Care | 1 |
|
- |
