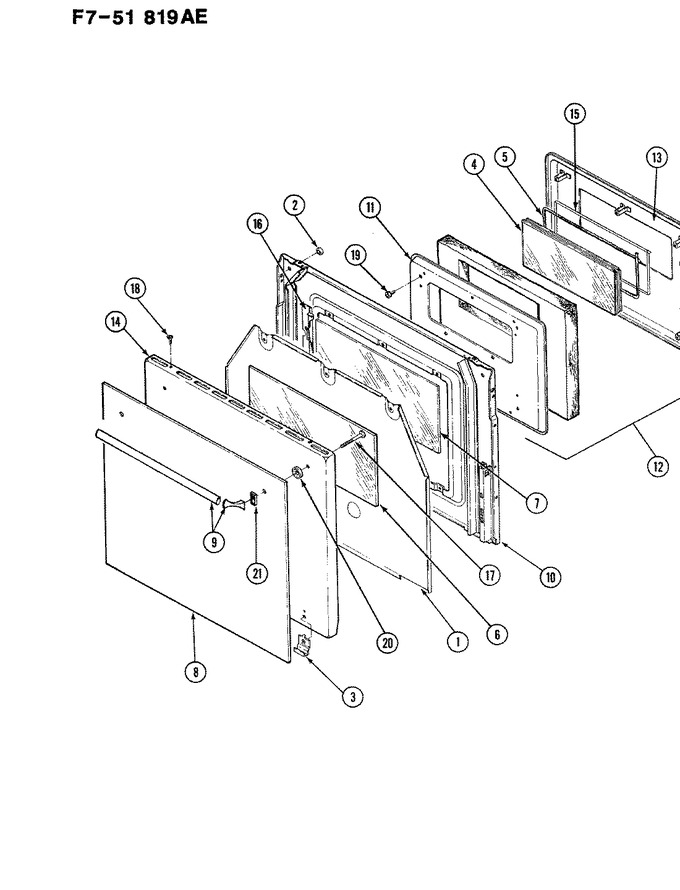

01 - Body


02 - Door Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3601F093-51		Baffle	1	Appelez-nous	-
2	8003P009-60		Bumper, Door (square)	13	Appelez-nous	-
2	8003P002-60		Bumper Door (round)	1-12	Appelez-nous	-
3	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	1			$ 15.94
3	3819F010-70		Clip, Glass Retainer (blk)	1	Appelez-nous	-
3	7112P051-60		Clip, Retainer	1	Appelez-nous	-
4	7902P287-60		Glass, Window Inner	1	Appelez-nous	-
4	7902P101-60		Glass, Window Outer	1	Appelez-nous	-
4	7706P177-60		Frame, Window	1	Appelez-nous	-
5	7201P018-60		Gasket, Window	1	Appelez-nous	-
6	7902P135-60		Glass, Clear	1	Appelez-nous	-
7	7902P097-60		Glass, Inner	1			$ 63.87
8	7902P120-60		Glass, Outer (black)	1	Appelez-nous	-
9	7701P025-60		Handle, Oven Door	1	Appelez-nous	-
9	8114P274-60		Label (cleaning Inst.)	11	Appelez-nous	-
9	W10124350		Not Required Part Or See Note	1-10	Appelez-nous	-
10	WP7103P114-60		Nut, Snap   (Replaces: 7103P114-60)	1			$ 9.89
10	2402W149-15		Lining, Oven Door	12	Appelez-nous	-
10	2402W125-12		Lining Assy, Ov Dr	1	Appelez-nous	-
10	2402W128-15		Lining	2-11	Appelez-nous	-
11	2410F016-51		Pad, Inner	1	Appelez-nous	-
12	2410A029-15		Pad, Assy.	1	Appelez-nous	-
13	2410W029-15		Pad, Door	1	Appelez-nous	-
14	2401W049-70		Panel, (black)	1	Appelez-nous	-
15	3804F022-45		Retainer	1	Appelez-nous	-
16	7107P017-60		Rivet	1	Appelez-nous	-
16	3804F051-80		Retainer, Glass	1	Appelez-nous	-
17	W11164114		Screw   (Replaces: 7101P162-60)	1			$ 3.76
18	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	1			$ 15.94
19	WP854334		Seal, Door Panel   (Replaces: 7208P009-60)	1			$ 11.95
19	WP7101P126-60		Screw   (Replaces: 7101P061-60)	1		Immediately	$ 6.85
20	74003986		Spacer, Glass   (Replaces: 8010P016-60)	1			$ 13.08
21	8270P010-60		Tape, Retainer Clip	1	Appelez-nous	-
21	8010P015-60		Spacer, Handle (blk)	1	Appelez-nous	-
21	7109P012-60		Washer, Lock	1	Appelez-nous	-
