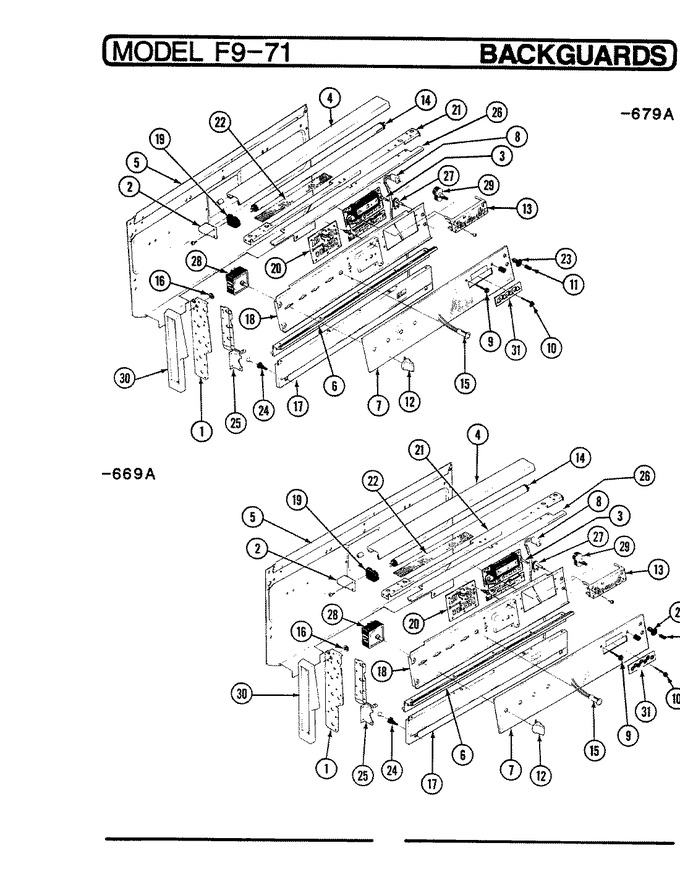

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel (epf9-71kx669a)
03 - Door (epf9-71kx669a)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3801F002-34 | Bracket (left) | 1 |
|
- | ||||
| 1 | 3801F109-34 | (right) | 1 |
|
- | ||||
| 1 | 7412P005-60 | Ballast | 1 |
|
- | ||||
| 2 | 3801F006-34 | Bracket | 1 |
|
- | ||||
| 3 | 7601P162-60 | Clock | 57 |
|
- | ||||
| 3 | 7601P070-60 | Clock | 1 |
|
- | ||||
| 4 | 7724P017-60 | Cover, Bkgd Lamp | 1 |
|
- | ||||
| 5 | 7706P166-60 | Extrusion, Glass Spt | 1 |
|
- | ||||
| 5 | 4005F185-20 | Cover, Bkg Wire | 1 |
|
- | ||||
| 6 | 7706P019-60 | Extrusion, Glass Support | 1 |
|
- | ||||
| 7 | 7910P031-60 | Glass, Bkgd | 1 |
|
- | ||||
| 8 | 5170A007-60 | Harness, Sensor | 1 |
|
- | ||||
| 9 | 7711P452-60 | Button, Clock Set | 57 |
|
- | ||||
| 9 | 7711P171-60 | Knob, Clock (button-blk) | 1 |
|
$ 19.90 | ||||
| 10 | 7711P172-60 | Knob, Clock (blk) | 1 |
|
$ 23.55 | ||||
| 11 | 7711P008-60 | Knob, Light Switch | 1 |
|
- | ||||
| 12 | 7737P009-60 | Knob, Infinite | 1 |
|
- | ||||
| 13 | 7730P002-60 | Lens, Clock | 1 |
|
- | ||||
| 13 | 7730P005-60 | Lens, Clock | 1 |
|
- | ||||
| 14 | WP95292 | Light, Control Panel (Replaces: 7407P004-60) | 1 |
|
Immediately | $ 121.45 | |||
| 15 | 7407P029-60 | Light, Signal | 1 |
|
- | ||||
| 16 | 7103P053-60 | Nut, Push-on End Cap | 1 |
|
- | ||||
| 17 | 2620F043-00 | Panel, Bkg Lower | 1 |
|
- | ||||
| 18 | 3605F134-20 | Plate, Switch Mtg. | 1 |
|
- | ||||
| 19 | 7408P005-60 | Receptacle, Lamp | 1 |
|
- | ||||
| 20 | 7428P005-60 | Relay, Board Assy. | 1 |
|
$ 192.58 | ||||
| 20 | 12001656 | Probe, Oven Sensor (Replaces: 7430P003-60) | 1 |
|
Immediately | $ 39.55 | |||
| 21 | 7003P021-60 | Shield | 1 |
|
- | ||||
| 22 | 3604F079-80 | Shield, Ov Lamp Recpt | 1 |
|
- | ||||
| 23 | 7214P001-60 | Sleeve, Switch | 1 |
|
- | ||||
| 24 | 7105P002-60 | Support, Main Top | 1 |
|
- | ||||
| 25 | 0862417 | Support | 1 |
|
- | ||||
| 25 | Y0862419 | Support, Broil Element | 1 |
|
- | ||||
| 26 | 8004P020-60 | Support, Relay Board | 1 |
|
- | ||||
| 26 | 3807F215-20 | Support, Bkgd Lamp | 1 |
|
- | ||||
| 27 | 5700A284-60 | Switch Push Assy | 1 |
|
- | ||||
| 28 | W11122008 | Switch, Inf. Control (Replaces: 7403P169-60) | 1 |
|
$ 143.28 | ||||
| 29 | 7403P019-60 | Switch, Light | 1 |
|
- | ||||
| 30 | 7726P007-60 | Trim | 1 |
|
- | ||||
| 30 | 7726P018-60 | Trim, Bkgd. (rt) | 1 |
|
- | ||||
| 31 | 7728P020-60 | Trim, Overlay | 1 |
|
- | ||||
| 31 | 7720P091-60 | Trim, Bezel | 1 |
|
- |
