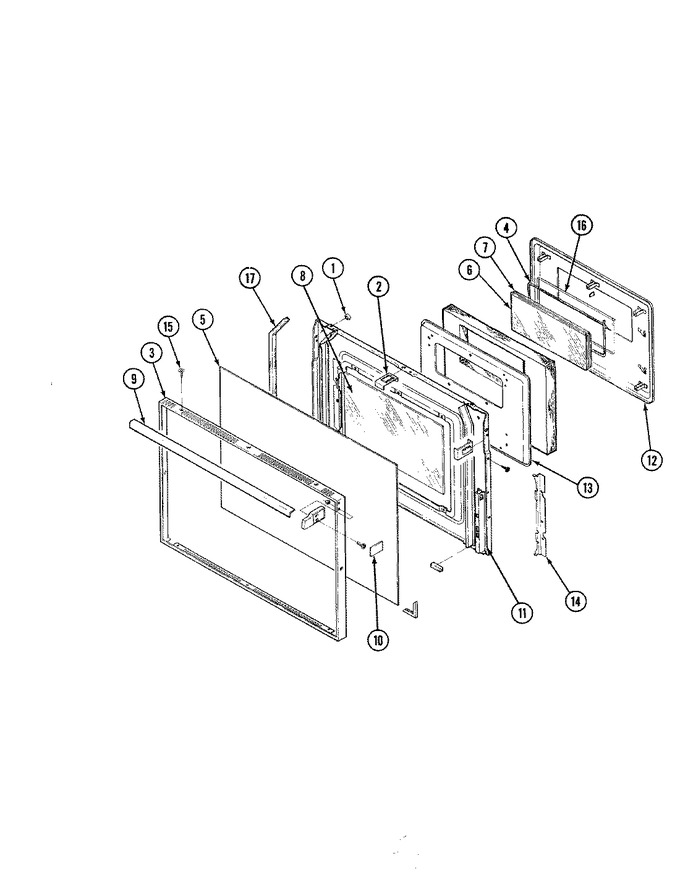

03 - Door (epf9-71kx669a)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8003P002-60 | Bumper Door (round) | 1 |
|
- | ||||
| 2 | 7112P034-60 | Clip, Door | 1 |
|
- | ||||
| 3 | 7706P195-60 | Frame, Oven Door | 1 |
|
- | ||||
| 3 | 7706P177-60 | Frame, Window | 1 |
|
- | ||||
| 4 | 7201P018-60 | Gasket, Window | 1 |
|
- | ||||
| 5 | 7902P276-60 | Glass, Door | 1 |
|
- | ||||
| 6 | 7902P103-60 | Glass, Window | 1 |
|
- | ||||
| 7 | 7902P101-60 | Glass, Window Outer | 1 |
|
- | ||||
| 8 | 7902P097-60 | Glass, Inner | 1 |
|
$ 63.87 | ||||
| 9 | 7701P047-60 | Handle, Door | 1 |
|
- | ||||
| 10 | 7728P012-60 | Insert, Oven Door Handle | 1 |
|
- | ||||
| 11 | 2402W125-12 | Lining Assy, Ov Dr | 1 |
|
- | ||||
| 12 | 2410W029-12 | Pad Assy, Ov. Dr. | 1 |
|
- | ||||
| 13 | 2410F016-51 | Pad, Inner | 1 |
|
- | ||||
| 14 | 3804F051-80 | Retainer, Glass | 1 |
|
- | ||||
| 15 | 7101P013-60 | Screw, Special | 1 |
|
- | ||||
| 15 | 7208P002-60 | Seal | 1 |
|
- | ||||
| 16 | 1726252 | Seal | 1 |
|
- | ||||
| 17 | WP854334 | Seal, Rubber (Replaces: 7208P011-60) | 1 |
|
$ 11.95 | ||||
| 17 | 3420A033-34 | Stop, Oven Door | 1 |
|
- |
